CPE antenna

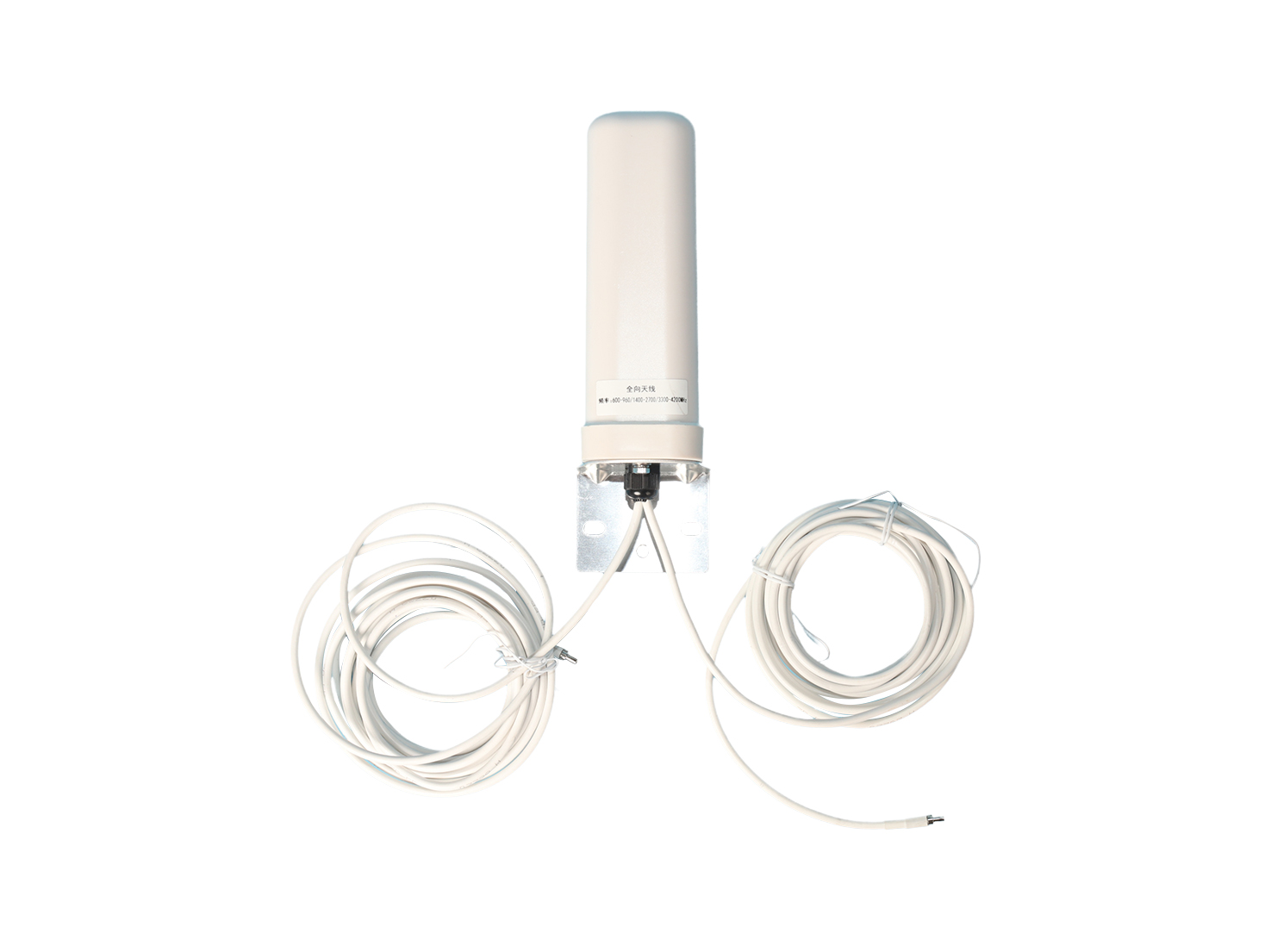

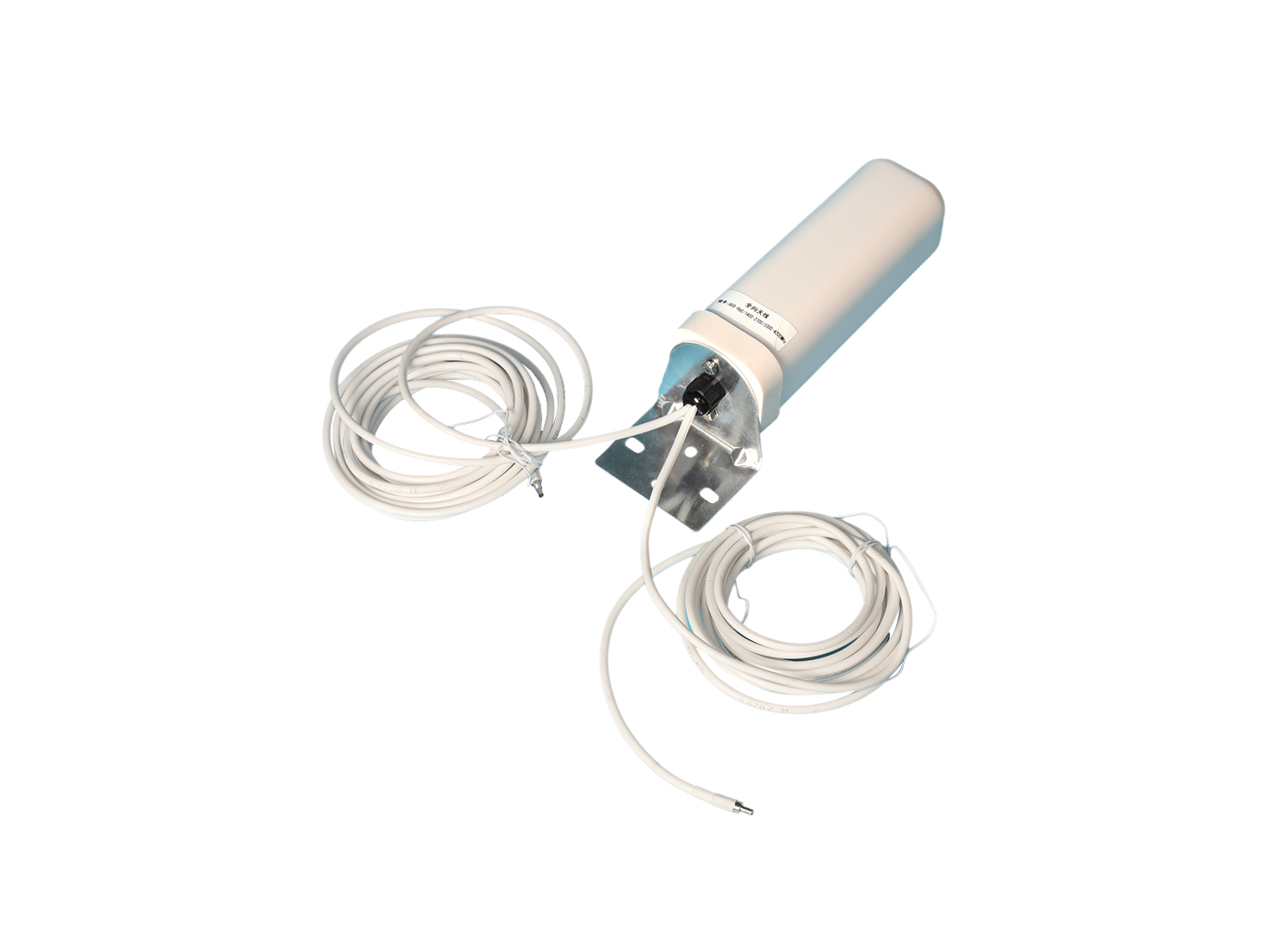

5G Outdoor Omnidirectional Antenna (Dual port)

Frequency range（MHz）: 600-960MHz / 1400-2690MHz / 3300-4200MHz

VSWR: ≤2.5

Gain（dBi）: 2dBi

Out-of-roundness: <3dBi

Polarization: Vertical polarization

Lightning protection: DC ground

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact5G Outdoor Omnidirectional Antenna (Dual port)
6e4dc3dbb46890e
73753f8fbbbbab5
270d4259734582b

Overview

The antenna covers multiple 5G frequency bands. By setting up and installing outdoor connection CPE, it transmits outdoor mobile signals into indoor areas to achieve high-speed wireless Internet access, solve the problem of weak indoor signals and inability to access the Internet, and achieve continuous WiFi coverage.

Key Features

• Broadband band

• High gain

•Small size

• Easy to install and erect

Specification

Electrical specification
Frequency range（MHz）

600-960MHz

1400-2690MHz

3300-4200MHz
VSWR ≤2.5
Gain（dBi） 2dBi
out-of-roundness <3dB
Polarization Vertical polarization
Lightning protection DC ground
Mechanical specification
Dimensions（mm） 70mm×70mm×210mm
Number of inputs 2
Connector types TS-9
Wall|pole mount included Yes
Radome material UV-protect plastic
Operating temperature（℃） -40°C to + 55°C

Applications
