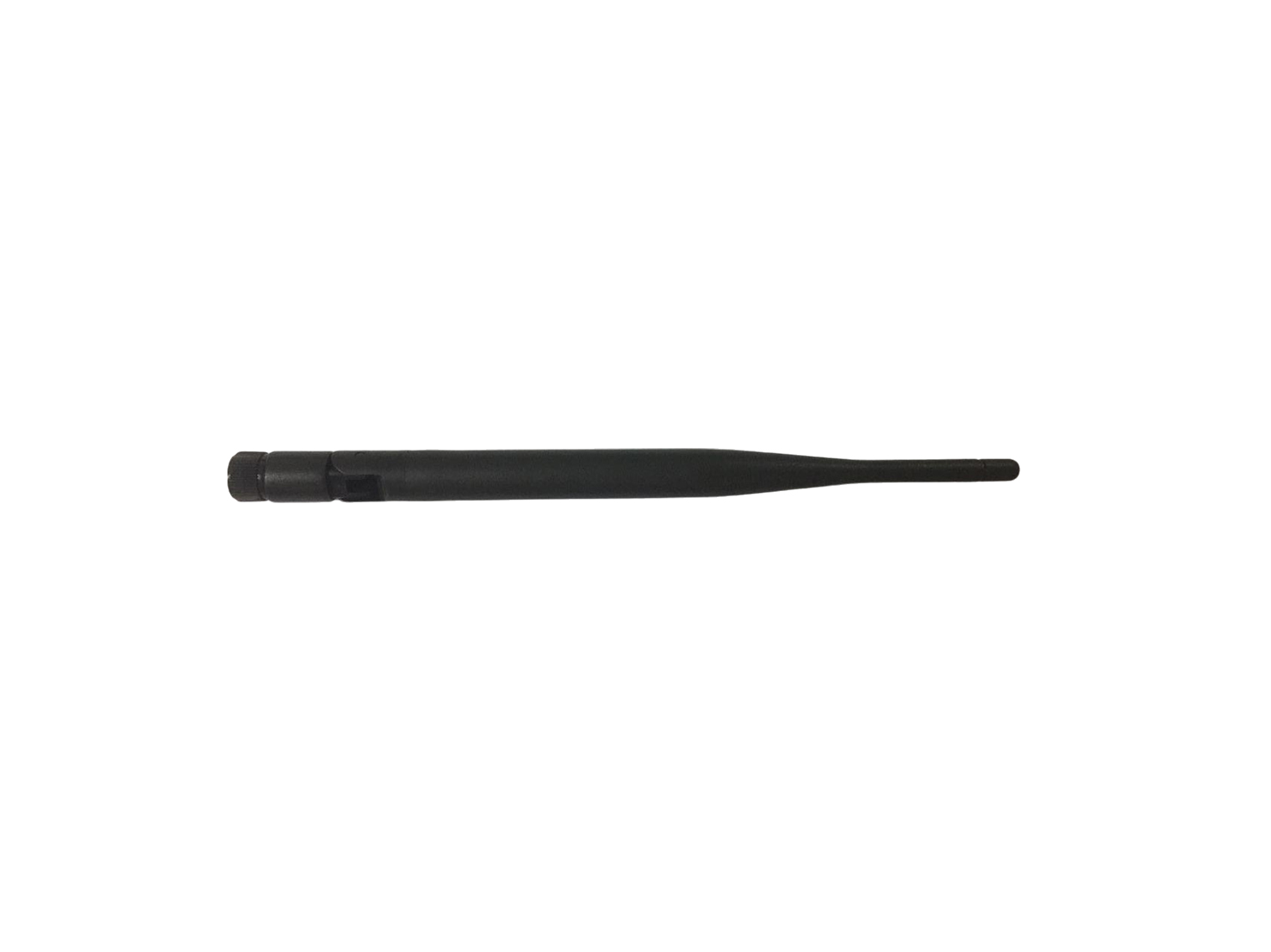

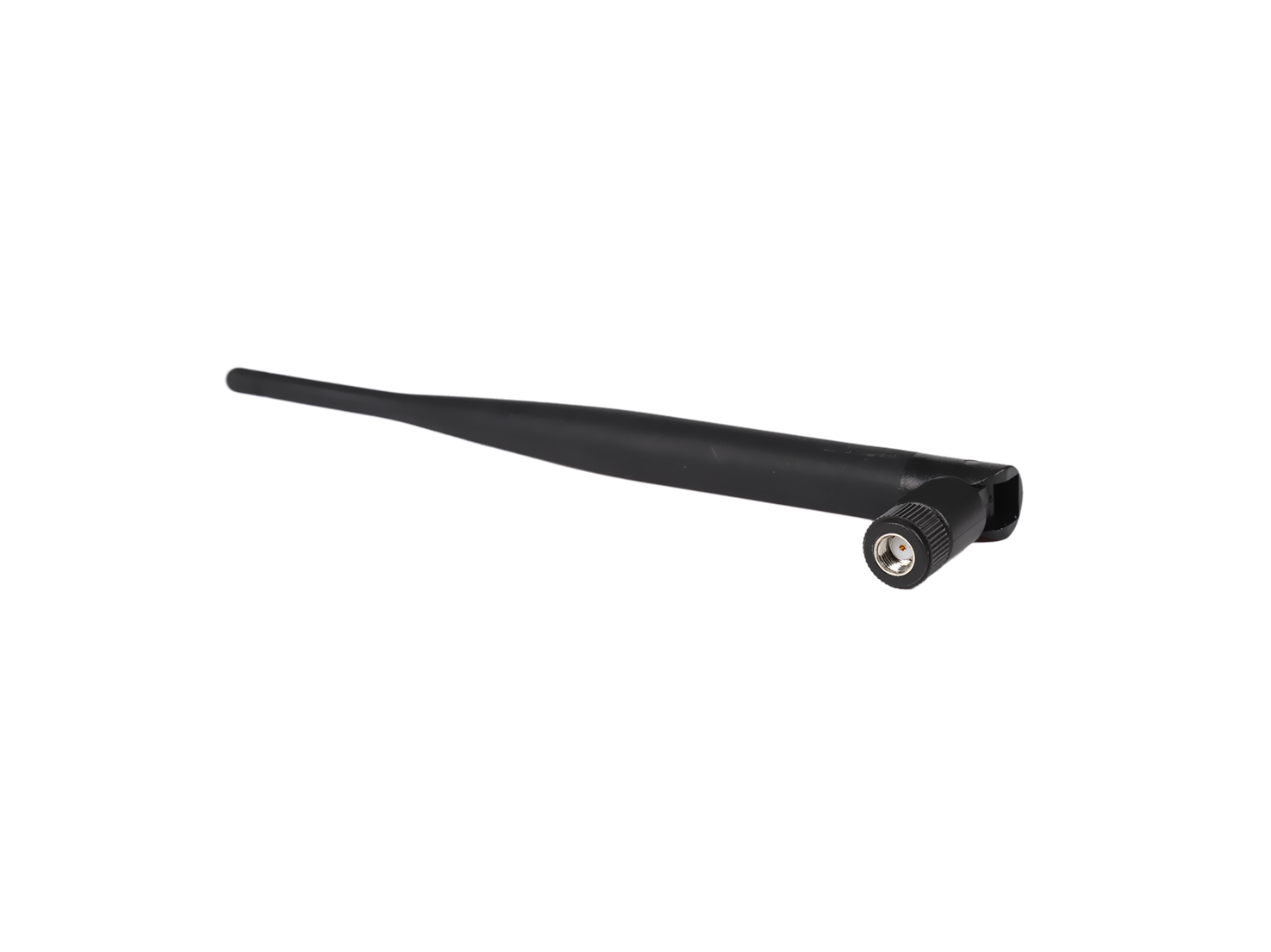

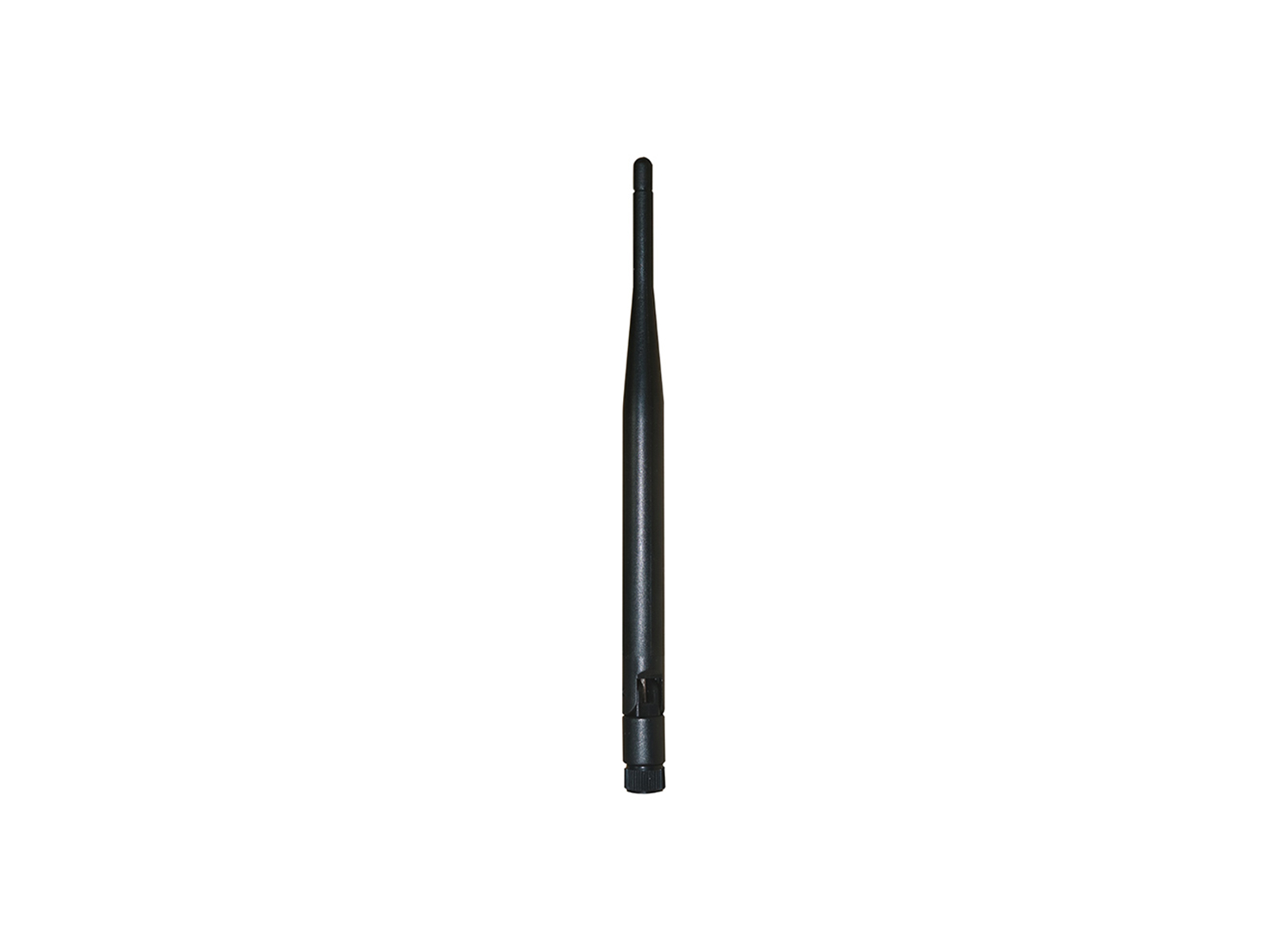

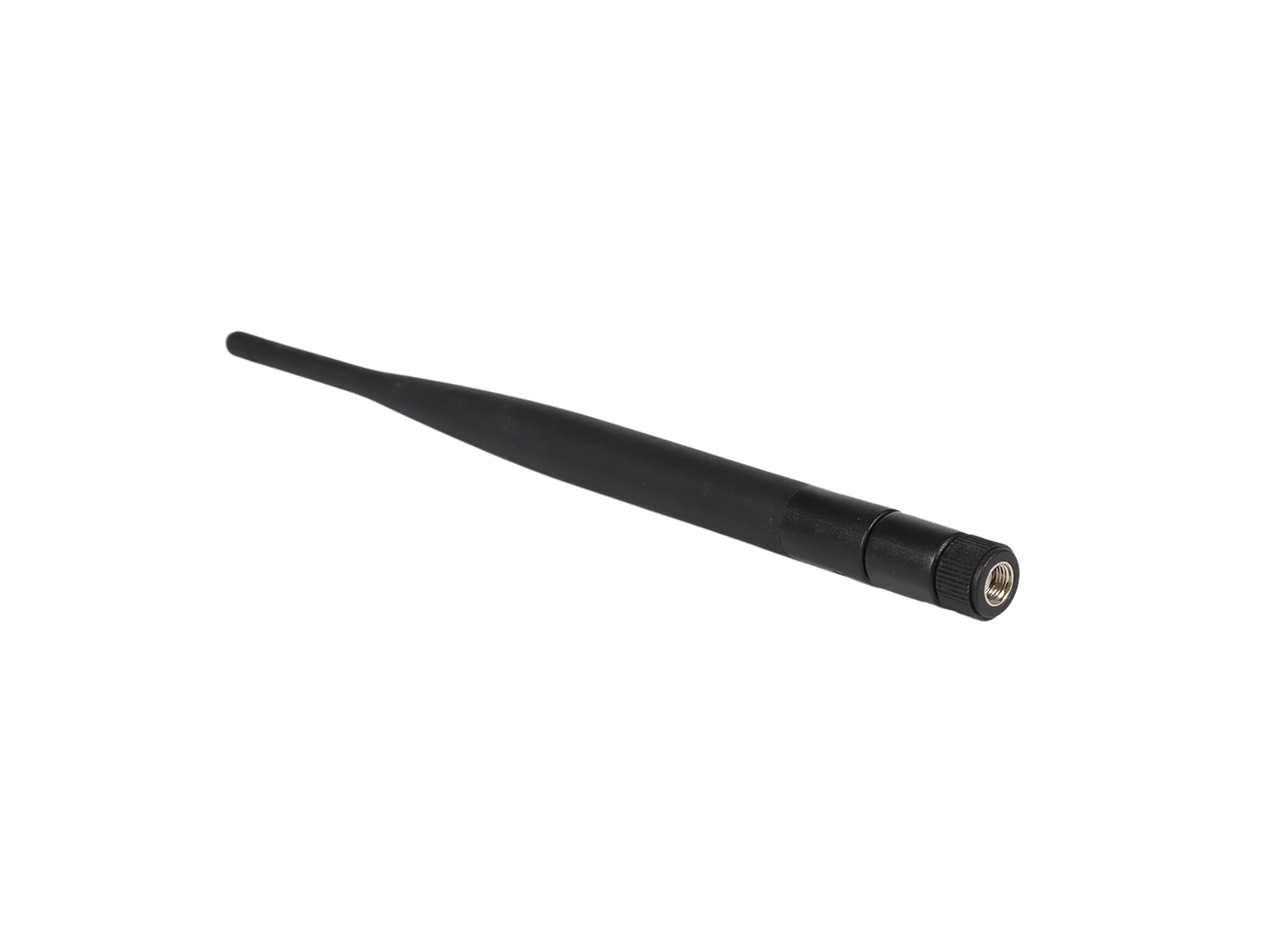

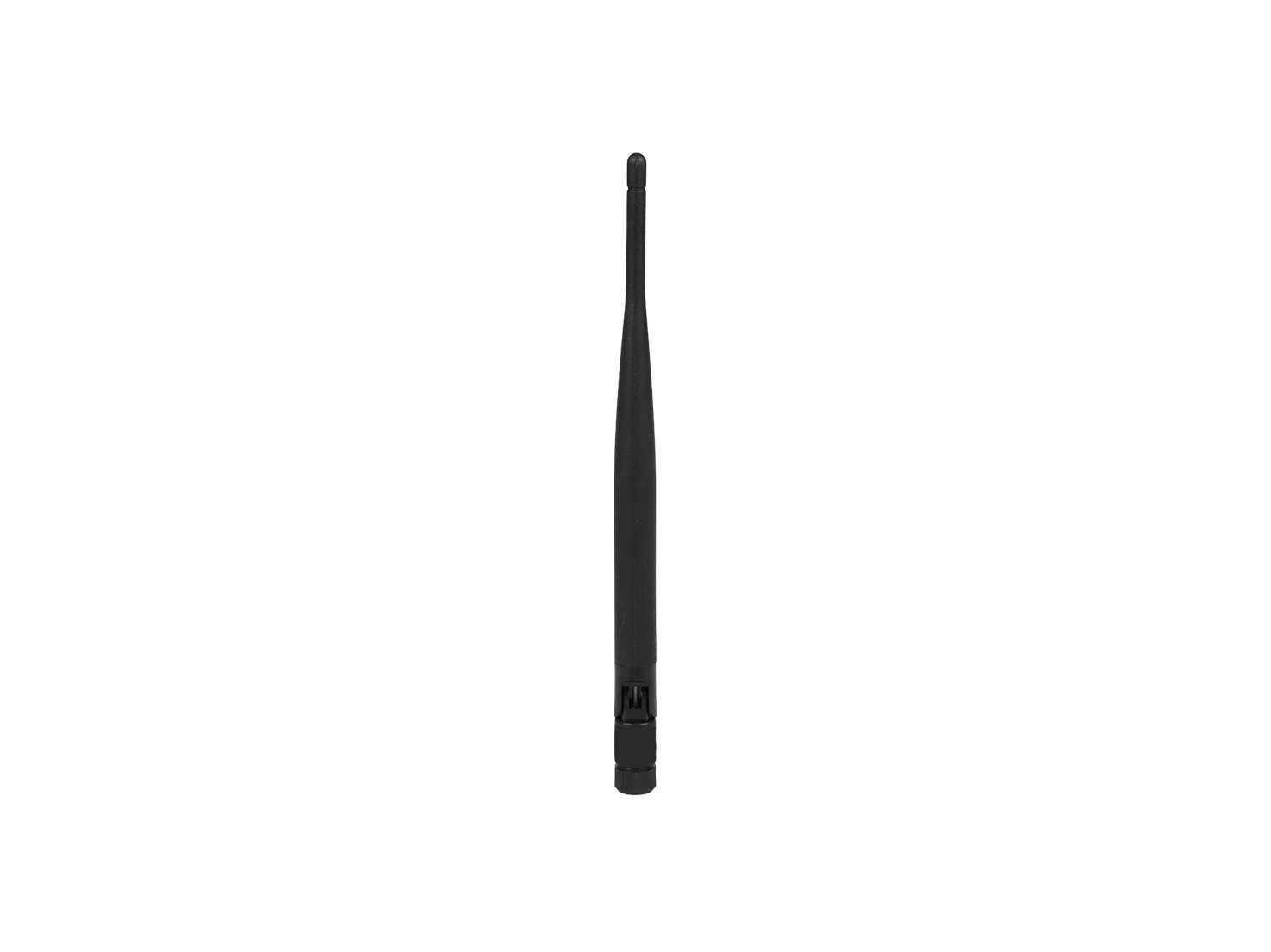

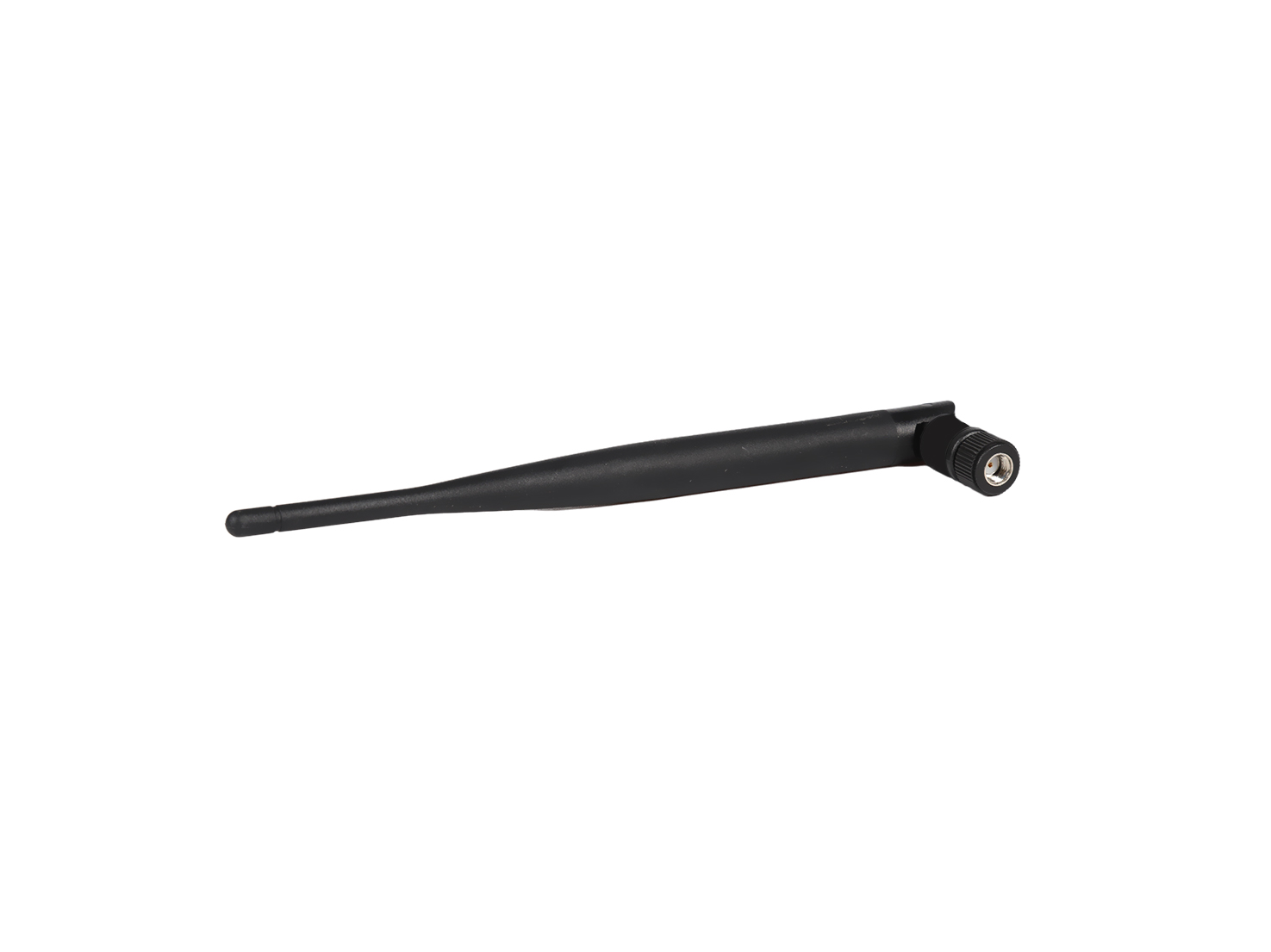

External rubber stick antenna

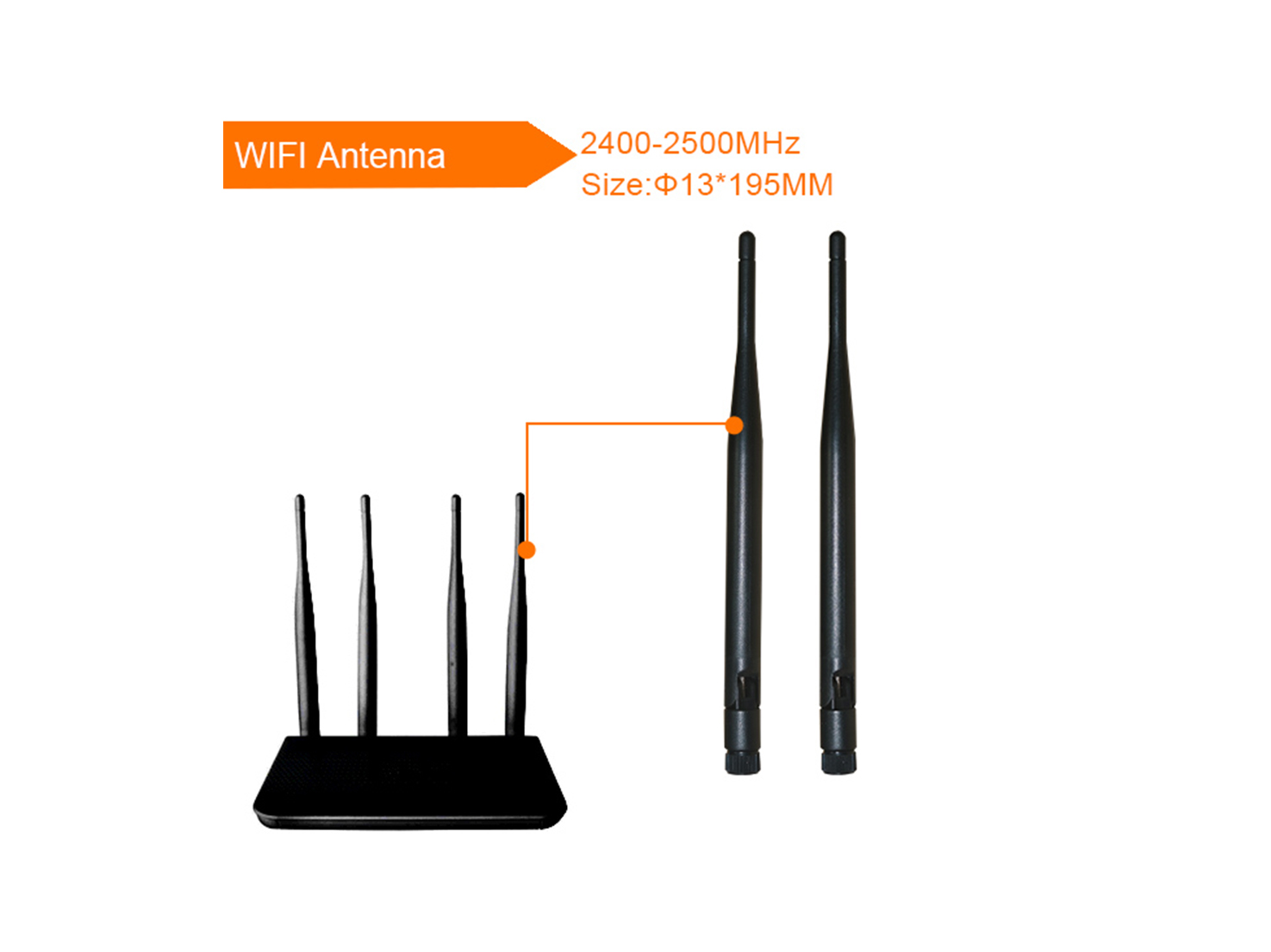

5dBi Wi-Fi Glue stick Antenna

Frequency Range: 2400-2500MHz

Impedance: 50Ω

VSWR: ≤2.0

Gain: 5dBi

Power Capacity: 2w

Electric Strength test: 1KV

On and off the test: On

Polarization: Vertical

Radiation: Omni

Connector: SMA- Male

Length: 195±3mm

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact5dBi Wi-Fi Glue stick Antenna
198d66b4e13bff
7e069a8c0793bcb
28021e1acf520bb
ec8e3b1af10643e
2edc1c7a1416dc4
4176a21483f33d0
dd36141edfb95f9

Overview

As an innovative wireless communication solution, Wi-Fi glue stick antenna is gradually changing our lifestyle. Its unique design and excellent performance make wireless network connection more stable and efficient. Whether at home, in the office or in public places, Wi-Fi glue stick antenna can provide excellent network coverage, allowing people to enjoy high-speed and stable network services anytime, anywhere.

Key Features

• Strong directionality

Wi-Fi glue stick antenna omnidirectional radiation can cover wireless signals in any direction, thereby improving signal transmission distance and penetration ability.



• Easy to install

The Wi-Fi glue stick antenna is very easy to install, just plug it into the antenna port of the device.

Specification

Frequency Range 2400-2500MHz
Impedance 50Ω
VSWR ≤2.0
Gain 5dBi
Electric Strength test 1KV
On and off the test On
Polarization Vertical
Radiation Omni
Connector SMA- Male
Length 195±3mm
Coaxial cable RG178
Salt-spray test 24H
Working Temp. -30℃~+65℃
Storage Temp -30℃~+70℃

Applications

1716969541195771

Overview

Key Features

Specification

Applications

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Have questions?

VLG Technical Consultants are here to assist you!

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)+86 186 8871 1070

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)Sales@vlg-solution.com

Leave a message

Related Products

NB Glue Stick Antenna Detail

External rubber stick antenna

NB Glue Stick Antenna

Frequency Range: 880-960MHz Impedance: 50Ω VSWR: ≤5.5 Gain:  -5.0dBi Connector: SMA Length: 44±0.5mm Salt Spray Test: 48H

5dBi Wi-Fi Glue stick Antenna Detail

External rubber stick antenna

5dBi Wi-Fi Glue stick Antenna

Frequency Range: 2400-2500MHz Impedance: 50Ω VSWR: ≤2.0 Gain: 5dBi Power Capacity: 2w Electric Strength test: 1KV On and off the test: On Polarization: Vertical Radiation: Omni Connector: SMA- Male Length: 195±3mm

4G+5G Glue Stick Antenna Detail

External rubber stick antenna

4G+5G Glue Stick Antenna

1.Frequency band： BAND-5/8/12/BAND1/3/38/39/40/41/BAND-N7-77-78-79 2.VSWR:≤6.0 ≤3.5 ≤3.5 3.Gain：≤0.1dBi  ≤ 1.7dBi ≤ 4.4dBi 4. Efficiency：≤40% ≤66% ≤75% 5.Polarization：Vertical 6.Connector：SMA male connector

Wi-Fi Glue Stick Antenna Detail

External rubber stick antenna

Wi-Fi Glue Stick Antenna

Frequency Range: 2400-2500MHz Impedance: 50Ω VSWR: ≤2.0 Gain: 2.0dBi Polarization:  Linear Connector: SMA-Male Length: 109±2mm

3-IN-1 4G+BT+GPS Combination Antenna Detail

External rubber stick antenna

3-IN-1 4G+BT+GPS Combination Antenna

Frequency: GPS/BT(Wi-Fi)/4G VSWR:＜2.0/＜2.5/ ＜3.0 Gain: ＜0.3dBi /＜-2.7dBi / ＜ 4.4dBi Max. Efficiency: ＜42%/＜20%/＜41% Application: Charging Pile, Vending Machine, ATM machine, Self-service all-in-one machine, smart parcel locker, various smart cabinet solution, and etc.

2.4 And 5.8GHz Wifi Antennas Dual WiFi Glue stick Antenna Detail

External rubber stick antenna

2.4 And 5.8GHz Wifi Antennas Dual WiFi Glue stick Antenna

Frequency Range: 2400-2500MHz/5150-5850MHz Impedance: 50Ω VSWR: ≤2.7 Gain: 5dBi Power Capacity: 2w Electric Strength test: 1KV On and off the test: On Polarization: Vertical Radiation: Omni Connector: SMA-Male Length: 196.2±2mm

High-Gain 2.4G Wi-Fi Antenna for Strong Signal Coverage Detail

External rubber stick antenna

High-Gain 2.4G Wi-Fi Antenna for Strong Signal Coverage

Model:V2263-010-A-01 Frequency ：2400-2500MHz Bandwidth：100MHz Impedance：50 Ω VSWR：<2.0 Gain：≤3±1dBi Max. Efficiency：≤70% Polarization：Linear polarization/Vertical Radiation pattern：Omni-directional Connector：iPex-1 Length：66mm Salt Spray Test：48H Environment Parameter Operation Temperature：-40℃~105 ℃ Storage Temperature：-30℃~70℃

6.4dBi 5G Glue stick Antenna Detail

External rubber stick antenna

6.4dBi 5G Glue stick Antenna

...

Hunting camera Antenna 600-6000MHz Wide Band 5G Antenna Detail

External rubber stick antenna

Hunting camera Antenna 600-6000MHz Wide Band 5G Antenna

Frequency Range: 600-6000MHz Max Gain(dBi): 5.38dBi VSWR: ≤2.3

4G Circular Antenna Detail

External rubber stick antenna

4G Circular Antenna

Frequency range: 820-960MHz/1710-2690MHz Impedance: 50Ω VSWR: <2.5 Polarization: linear polarization/vertical Radiation: omnidirectional Connector: RP-SMA

4G lte Antenna (with Magnetic Base) Detail

External rubber stick antenna

4G lte Antenna (with Magnetic Base)

Frequency Range: 800-960MHz/1710-2690MHz Impedance: 50Ω VSWR: ≤2.5 / ≤3.0 Gain: 4.0dBi / 5.0dBi Efficiency: ≥75% / ≥65%

4G Glue Stick Antenna Detail

External rubber stick antenna

4G Glue Stick Antenna

Frequency range: BAND-5/8/BAND1/3/38/39/40/41 Impedance: 50Ω VSWR: <2.5 / <3.0 Efficiency: >53% / >39% Polarization: Linear polarization / Vertical Radiation: Omnidirectional Connector: Cable (With IPEX connector)

ZB220 Antenna 2400-2500MHz Waterproof And Drop-resistant Circular Polarization FPV Drone Video Transmission Gain Antenna Detail

External rubber stick antenna

ZB220 Antenna 2400-2500MHz Waterproof And Drop-resistant Circular Polarization FPV Drone Video Transmission Gain Antenna

...
