Vehicle Antenna

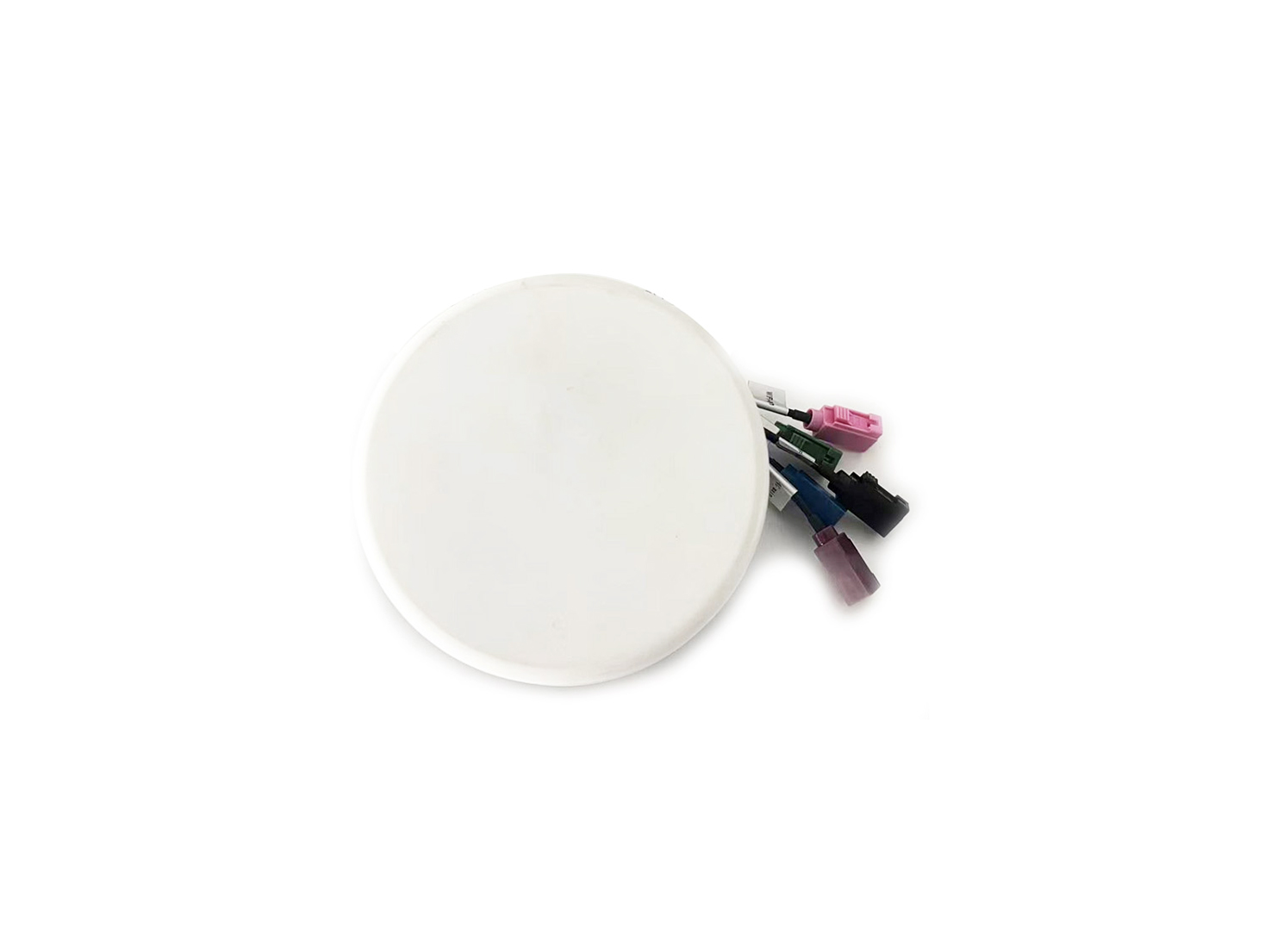

5-in-1 combo Antenna for Charging Pile

1*4G 820~960, 1710~2690 Mhz

1*wifi 2400-2500 Mhz

1*BLE

1*GPS 1559-1585 Mhz

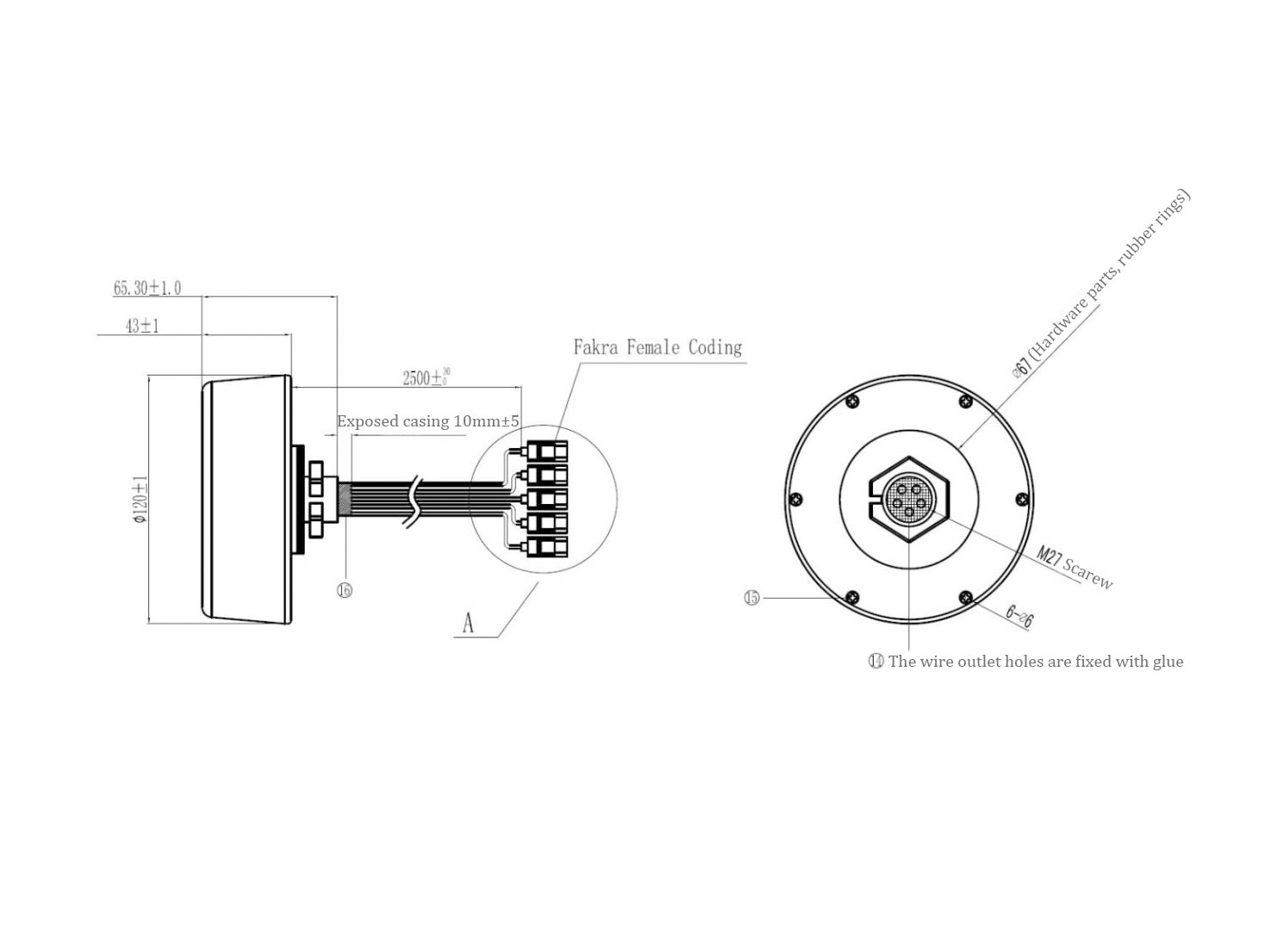

Dimension φ120*43

Connector: Fakra, SMA, MINI Fakra or Customize

Protection：IP69K

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact5-in-1 combo Antenna for Charging Pile
fe10c0cdab728c6-2
907a7f27045d-2
87b089c59655053-2
303aceba895c4ae-2

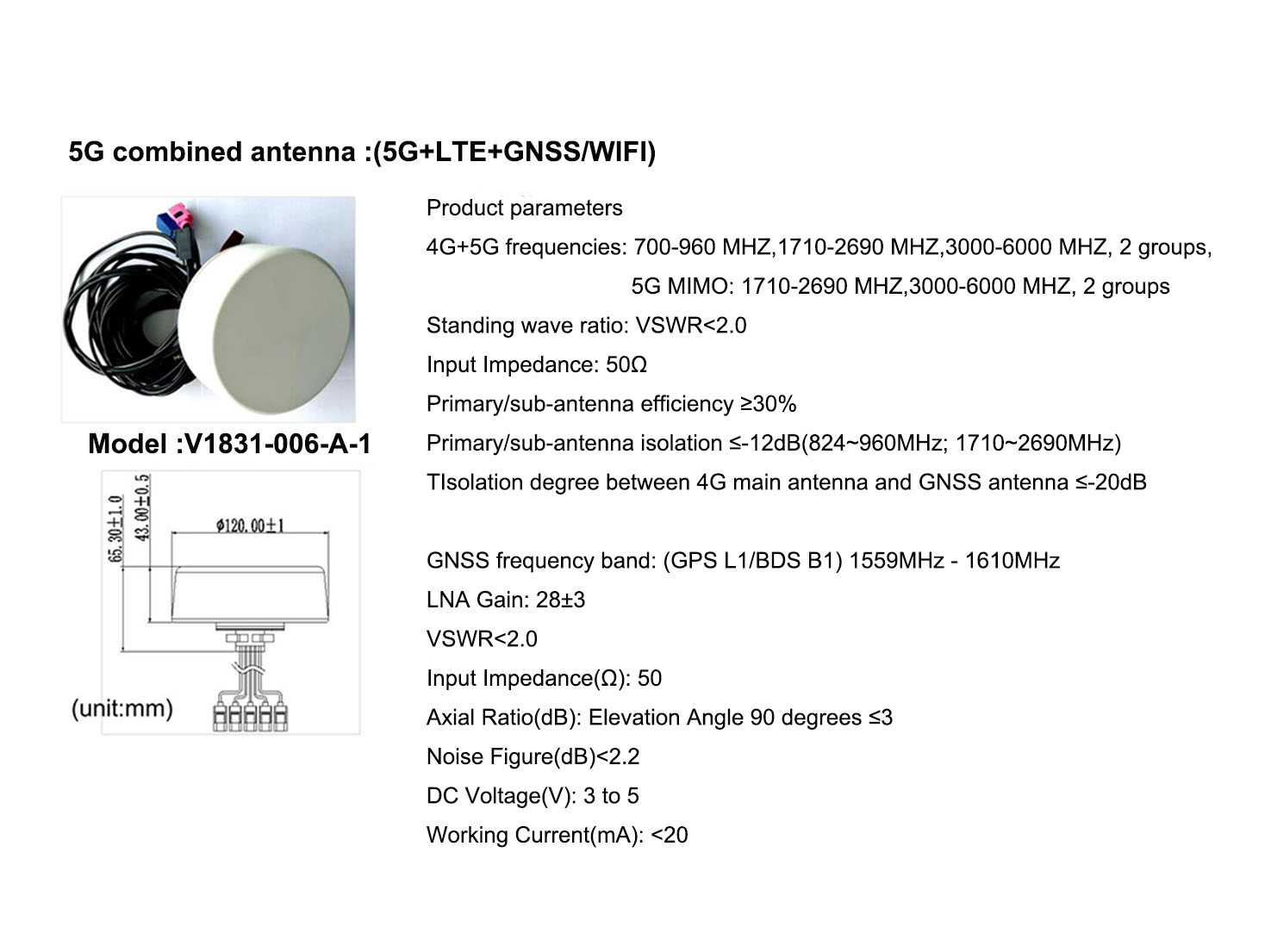

Specification

GNSS antenna

(1) GPS L1 /BDS B1 ;

(2) Frequency: 1559∽1609 MHz；

(3) Working Volt.: 3V∽5V;

(4) Working Current: 9±3mA@3V;

(5) Gain (PCBA): 20±3dB;

(6) LNA Gain: 10±3dB@2.5m cable

(7) Noise Figure: ≤2dB;

(8) V.S.W.R: ≤2.0:1;

(9) Impedance: 50Ω
LTE Antenna

(1) LTE Main/Div. antenna Frequency ：700-960/1710-2690MHz;

(2) BT/WIFI antenna Frequency ：2400-2500MHz;

(3) WIFI antenna Frequency ：2400-2500/5150-5850MHz;

(4) V.S.W.R:4G Main/Div. Antenna：700-960<3;1710-2690<2.0;

     BT /WIFI antenna：2400-2500<1.5;

     WIFI antenna：2400-2500<1.5;5150-5850<1.5

(5) Gain >-2.5dB

(6) Impedance：50Ω
Working temperature -40℃～+85℃
Storage temp. -40℃～+95℃
Pulling force of connector ≥100N
Protection IP67

Specification

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)
