Vehicle Antenna

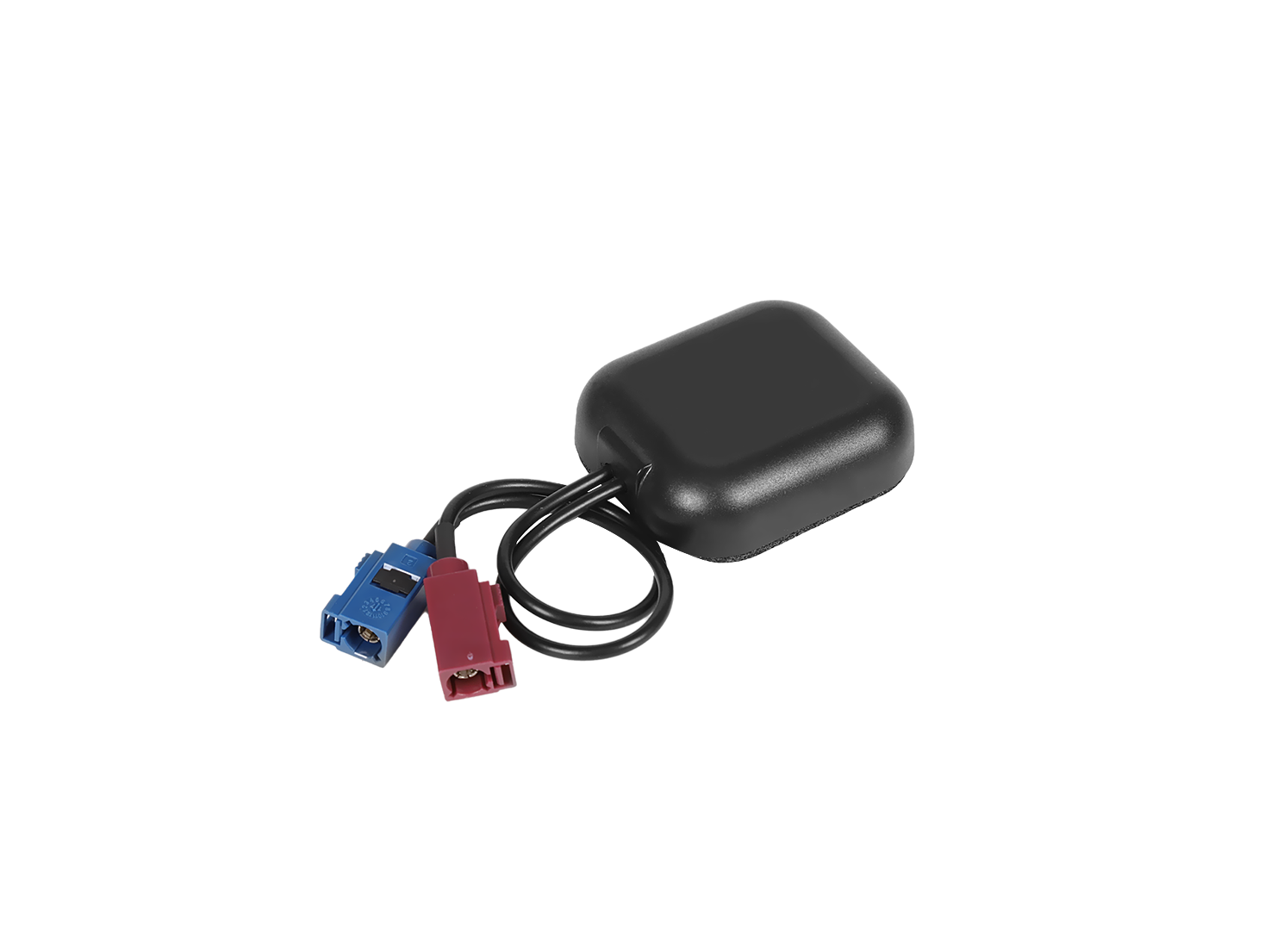

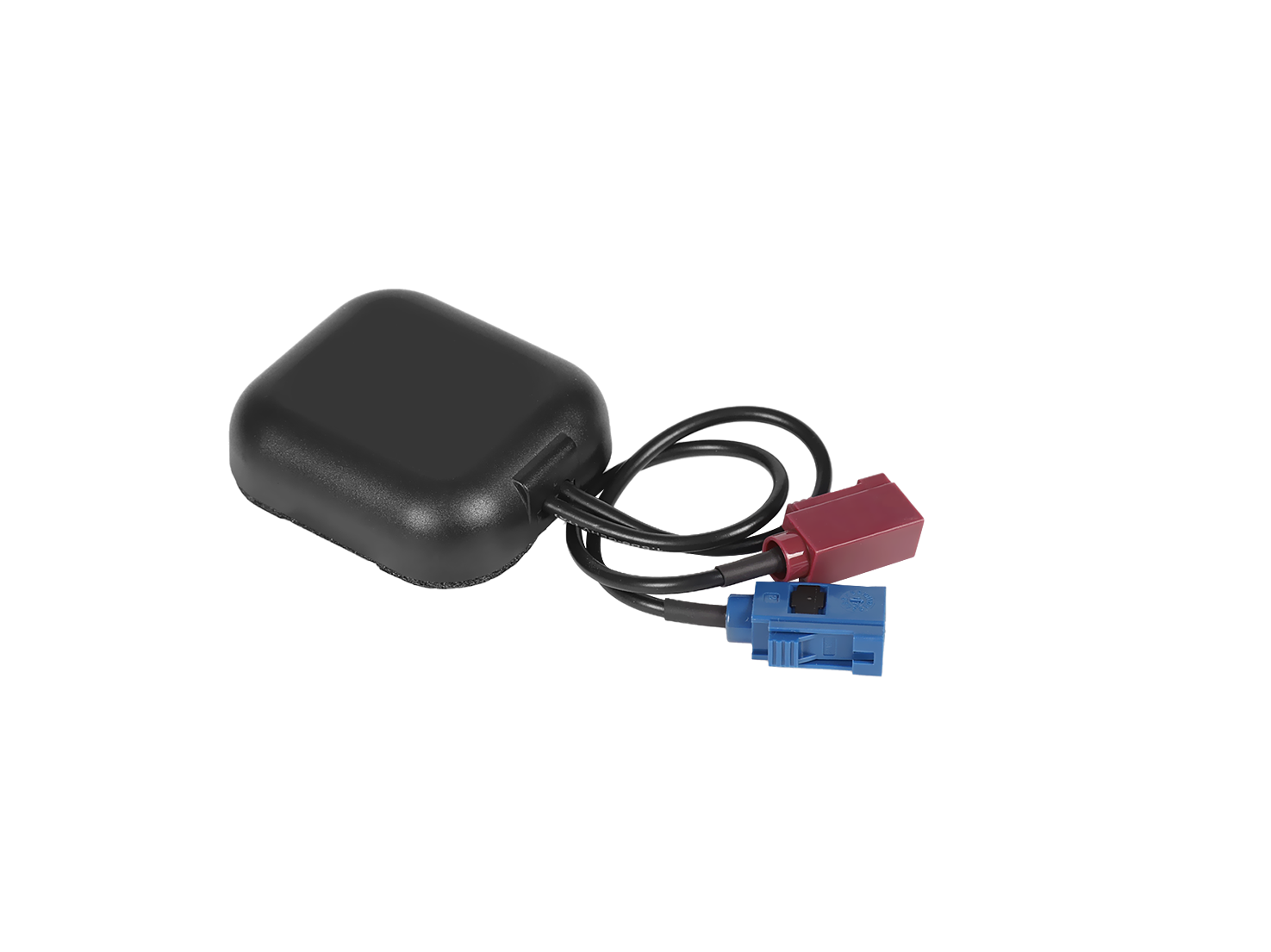

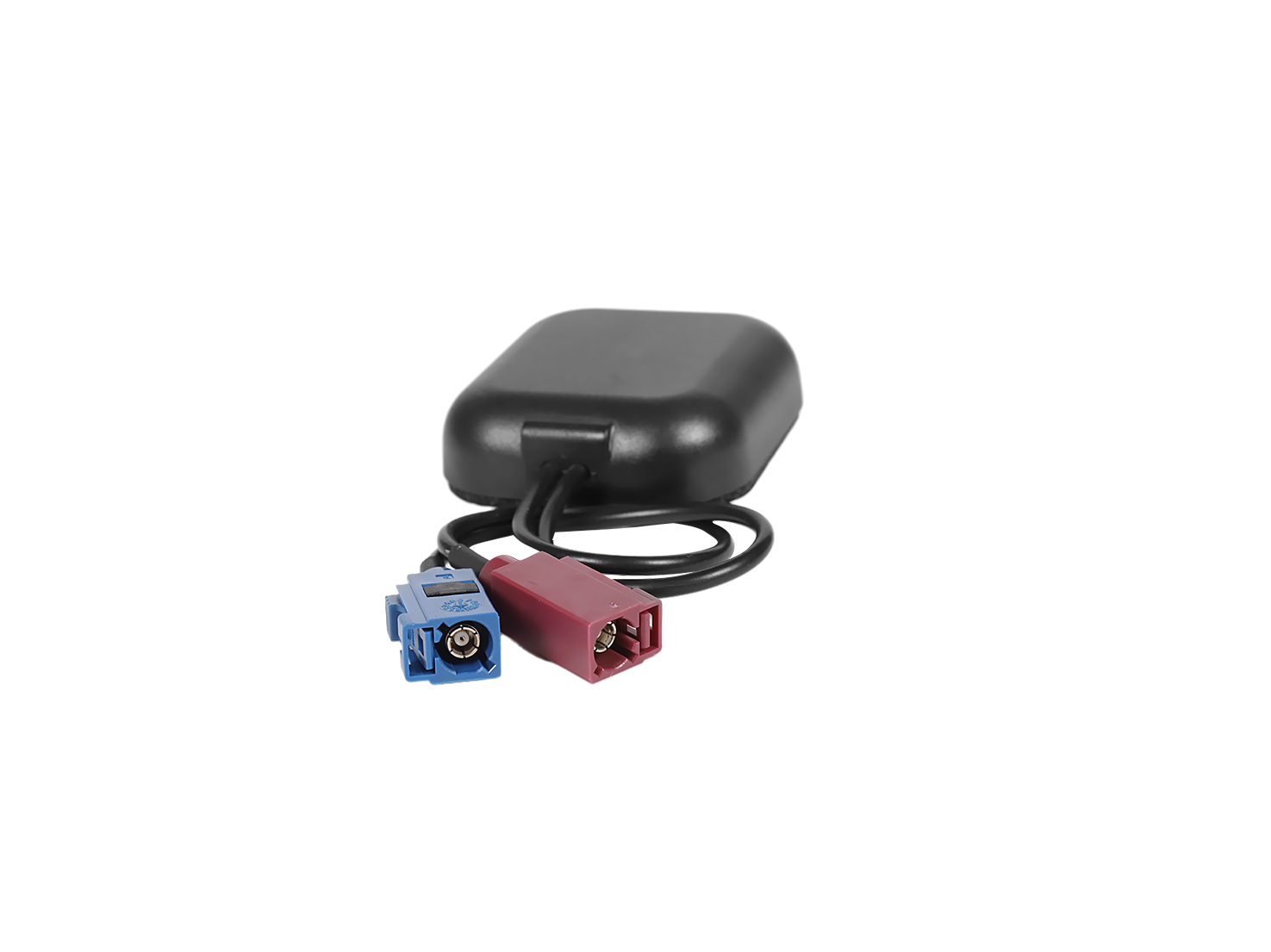

4G GPS 2-in-1 combo Antenna for Car

1*4G 824~960/1710~2170/2300~2690MHz

1*GPS L1、BDS B1

Connector: Fakra or Customize

Cable: RG 174 50cm or Customize

Protection: IP52

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact4G GPS 2-in-1 combo Antenna for Car
906af173e06c5f3-2
5e786a59258d0ea-2
4711a59bd3abb-2
765e5b8490f0c-2
3128f5afe291d05-2

Overview

Overview

The combined vehicle antenna adopts multi-feed points and a completely symmetrical structure, which reduces the error of the antenna when measuring.



The antenna has the characteristics of high gain, directional beamwidth, low elevation signal reception, etc., to ensure that the satellite signal can be received.



Usually in a severely closed environment. In the low noise amplification part, the pre-filtering scheme is adopted to effectively suppress out-of-band interference and improve system reliability.



The combined vehicle antenna covers GPS L1, BDS second-generation B1/, GLONASS L1, 4G communication, meets the on-board T-BOX host equipment, has the characteristics of multi-system compatibility and high-precision measurement, and is widely used in mapping, ocean survey, geological deformation monitoring and other fields.



Key Features

Multi-band Coverage

The antenna usually supports 4G network connection communication, while providing GNSS high-precision navigation functions.



Anti-interference

To ensure stable operation in complex environments, this antenna is specially designed to reduce interference from other wireless devices.



Specification

Function 4G Antenna Part (Main) GNSS
Frequency Range 824~960/1710~2170/2300~2690MHz GPS L1、BDS B1
V.S.W.R ＜3.0/＜3.0/<2.5 ≤2.0:1
lmpedance 50±3Ω 50Ω
Polarization Linear RHCP
gain ≥-4dBi ≥0dBi
Isolation ≥10dB ≥10dB



GPS Low noise amplifier characteristics
Working voltage 3V∽5V
Working current 9mA±3mA@3.3V
Output gain 28±3dB
Output impedance 50±3Ω
Output standing wave ratio ≤2.0:1
Noise factor ≤2dB
Environmental Requirements
(1) Operating temperature  -40℃ ~ +85℃
(2) Storage temperature -40℃ ~ +90℃
(3) Protection grade  IP52 (after vehicle assembly)

Applications

Suitable for all kinds of models (SUV/ car).Front and rear loading of passenger cars and engineering vehicles, data transmission, 4G communication, navigation and positioning, transmission, communication, navigation and positioning.

Industrial Internet of Things, Smart Factory.
