4-in-1 5G/4G MIMO Roof Mount Antenna

Vehicle Antenna

4-in-1 5G/4G MIMO Roof Mount Antenna

* Frequency Bands: 700~5000MHz, 1710~5000MHz

* Gain: 0 Min

* VSWR: ≤4

* Average efficiency: 700~960MHz: 30%; 1710~2690MHz: 50%; 3300~5000MHz: 50%;

* Technology: 5G/4G

* Cable Length: 50cm

* Connector Type: SMA -Male(SMA-J)

* Input impedance: 50Ω

* Dimensions: φ120 x 43mm

* Application: Charging Pile, Transportation and Autonomous Vehicles, 5G Outdoor Equipment Enclosures, and etc.

Leave a message JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Contact

Overview

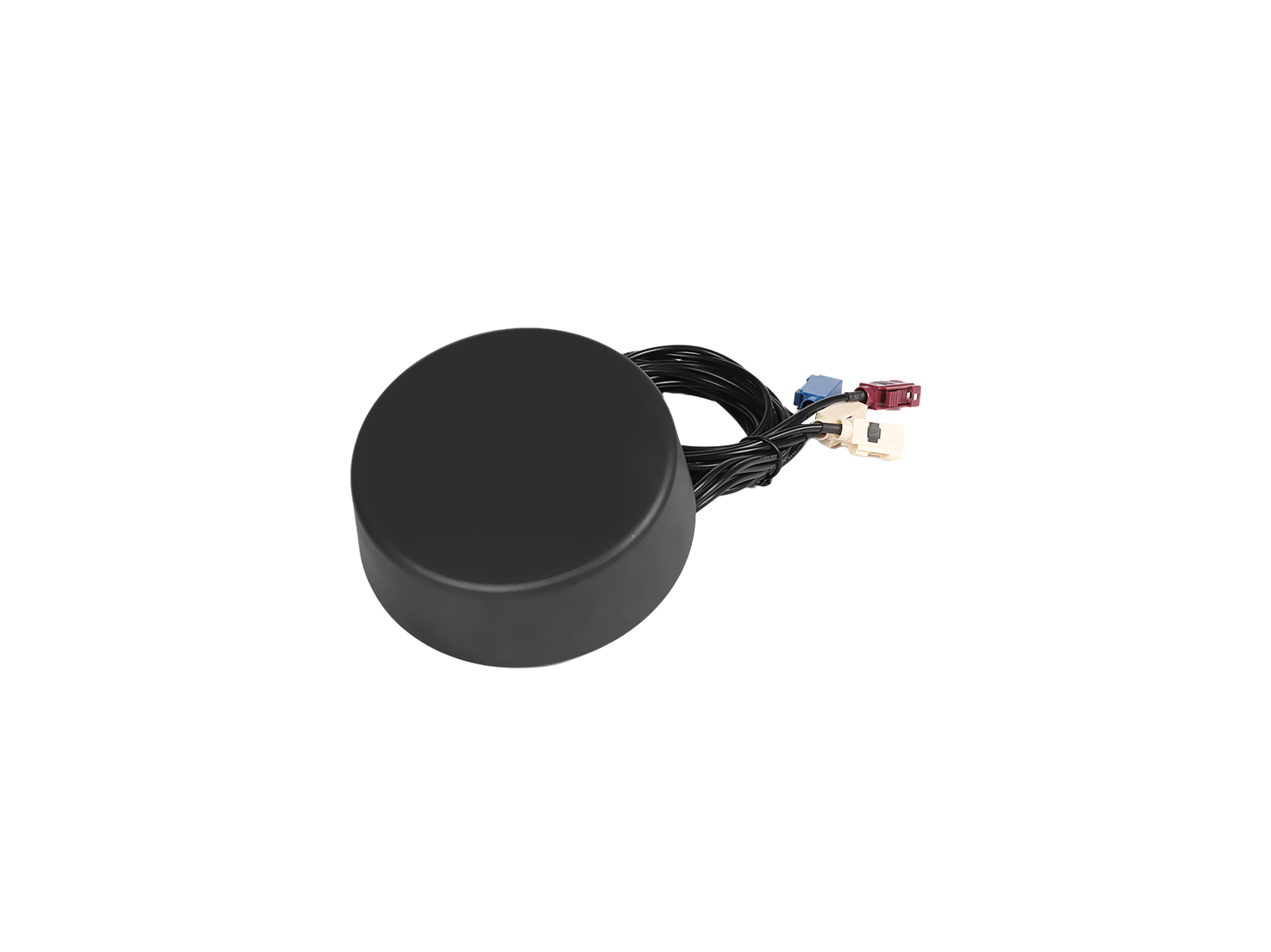

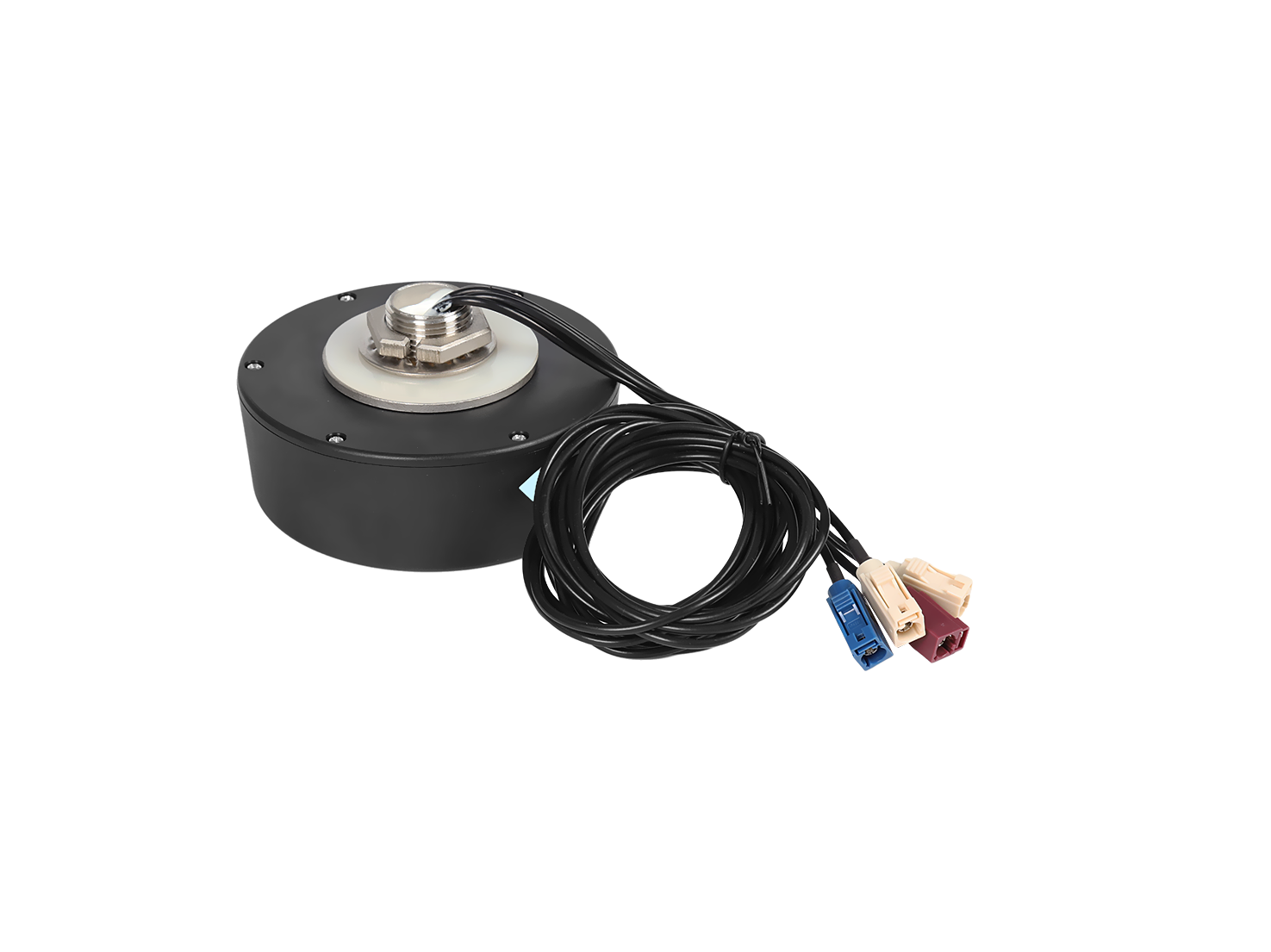

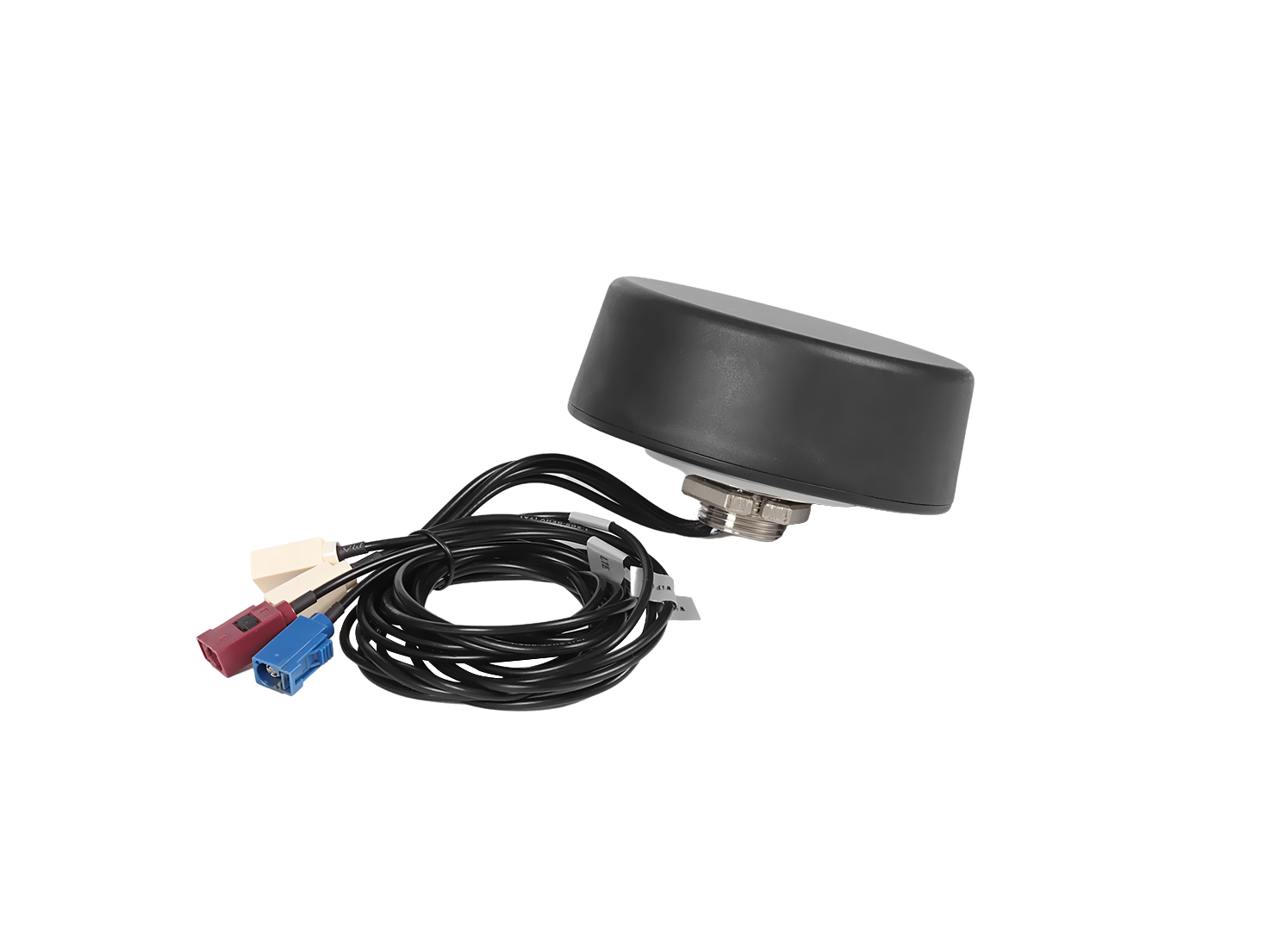

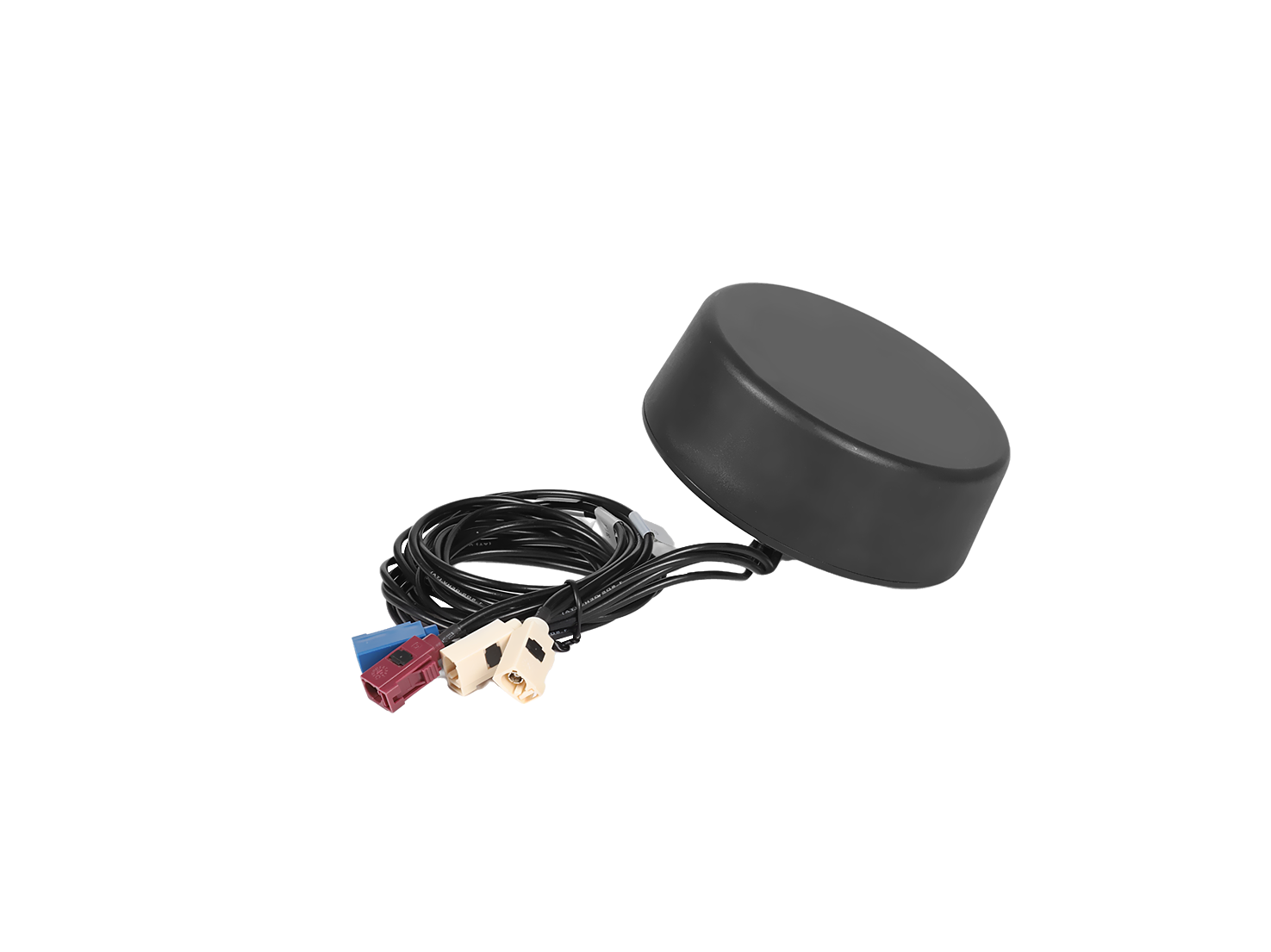

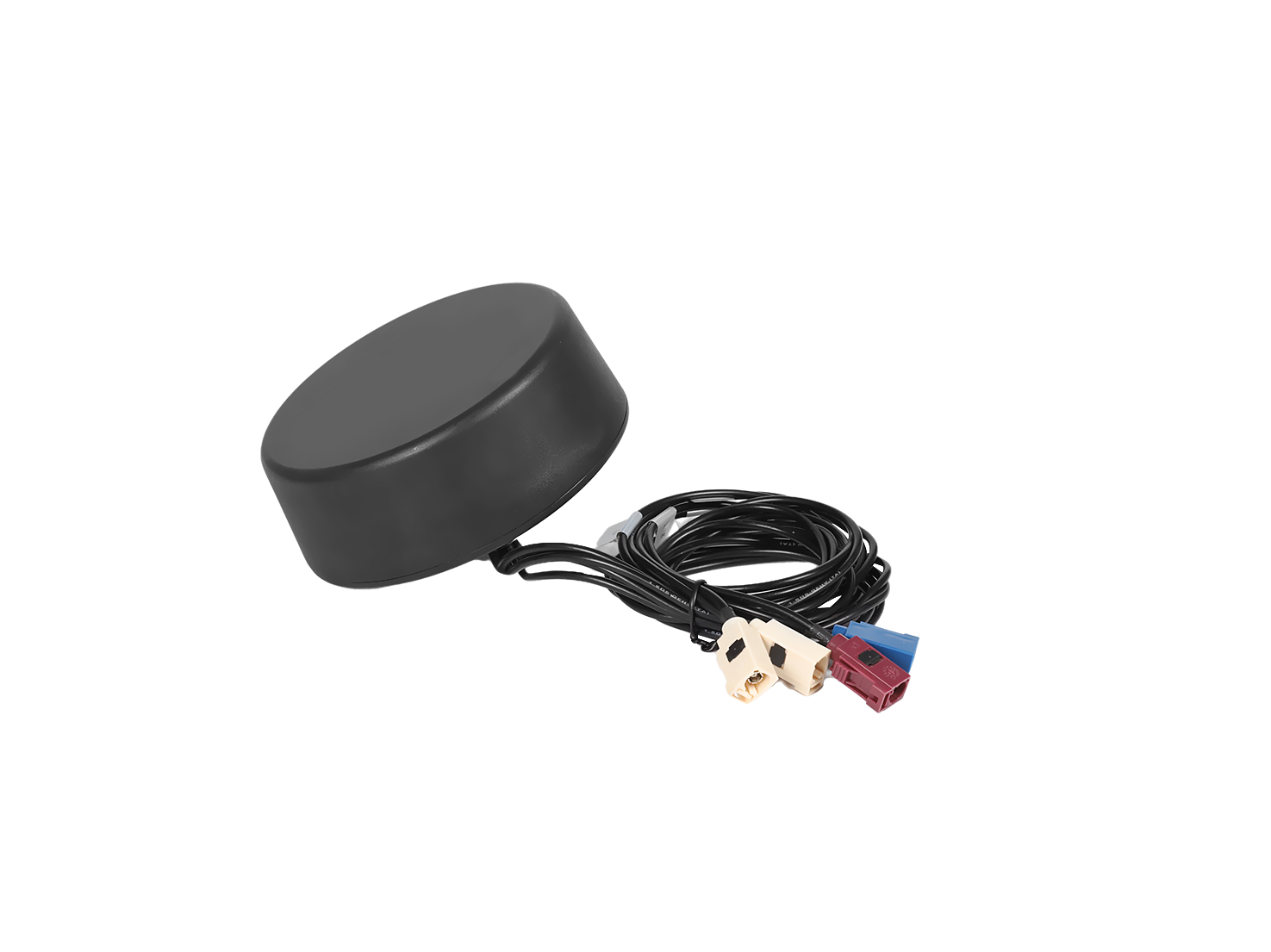

This is a roof mount antenna with IP69k protection, designed to cover 5G and 4G cellular bands between 700MHz up to 5G. This is a 4-in-1 antenna with 2 5G(Main & Aux )antenna and 2×2 5G MIMO Antennas in one compact enclosure. With the full coverage of 5G, it is ideal to have an antenna that can cover multiple different frequency bands for various uplink and downlink requirements, increasing throughput for a device..

Key Features

• Easy Installation

The antenna is designed to work with various GND plane sizes or in free space for ease of integration with connection via 4 customizable length cable & connector.

• IP69K Protection

It has a robust enclosure as well as IP69K waterproof rated, it is ideal for installation in harsh environment and areas not protected from rainfall, such as on the roof of a bus stop, engineering vehicle, charging piles, and etc.

• 2×2 MIMO Tech.

This combination antenna comes with 2X2 MIMO antenna, which allows the device to transmit and receive several signals in one time, give user great experience on flying Internet speed.

• High Efficiency

This antenna has efficiency up to 62%, which gurantee the signal can be transmit and receipt effectively, which is important to increase the whole performance of the communciation system.

Specification

Function	5G MIMO 1	5G MIMO 2	5G Main Antenna	5G AUX Antenna
(1) Frequency range:	1710-2690/3300-5000MHZ	1710-2690/3300-5000MHZ	700-960/1710-2690/3300-5000MHZ	700-960/1710-2690/3300-5000MHZ
(2) V.S.W.R:	<3.0/<3.0	<3.0/<3.0	<5.0/<3.0/<3.0	<5.0/<3.0/<3.0
(3) Impedance:	50Ω	50Ω	50Ω	50Ω
(4) Gain:	Min/Max 1.98/3.87dBi	Min/Max 1.18/4.16 dBi	Min/Max -0.99/4.08dBi	Min/Max -0.91/4.26dBi
(5) Polarization:	Linear	Linear	Linear	Linear
(6) Efficiency	Max 58%	Max 60%	Max 62%	Max 58%

Mechanical Specifications
(1) Size(mm)	φ120*43
(2) Casing	PC+ABS
Environmental Requirements
(1) Operating temperature	-40℃ ~ +85℃
(2) Protection grade	IP69K
