首页图标Home >  Product > Vehicle Antenna > On-board intelligent network antenna
e584efccdc5e369-2
0ebf5e75410d-2
d944e53782db2e7-2
Vehicle Antenna

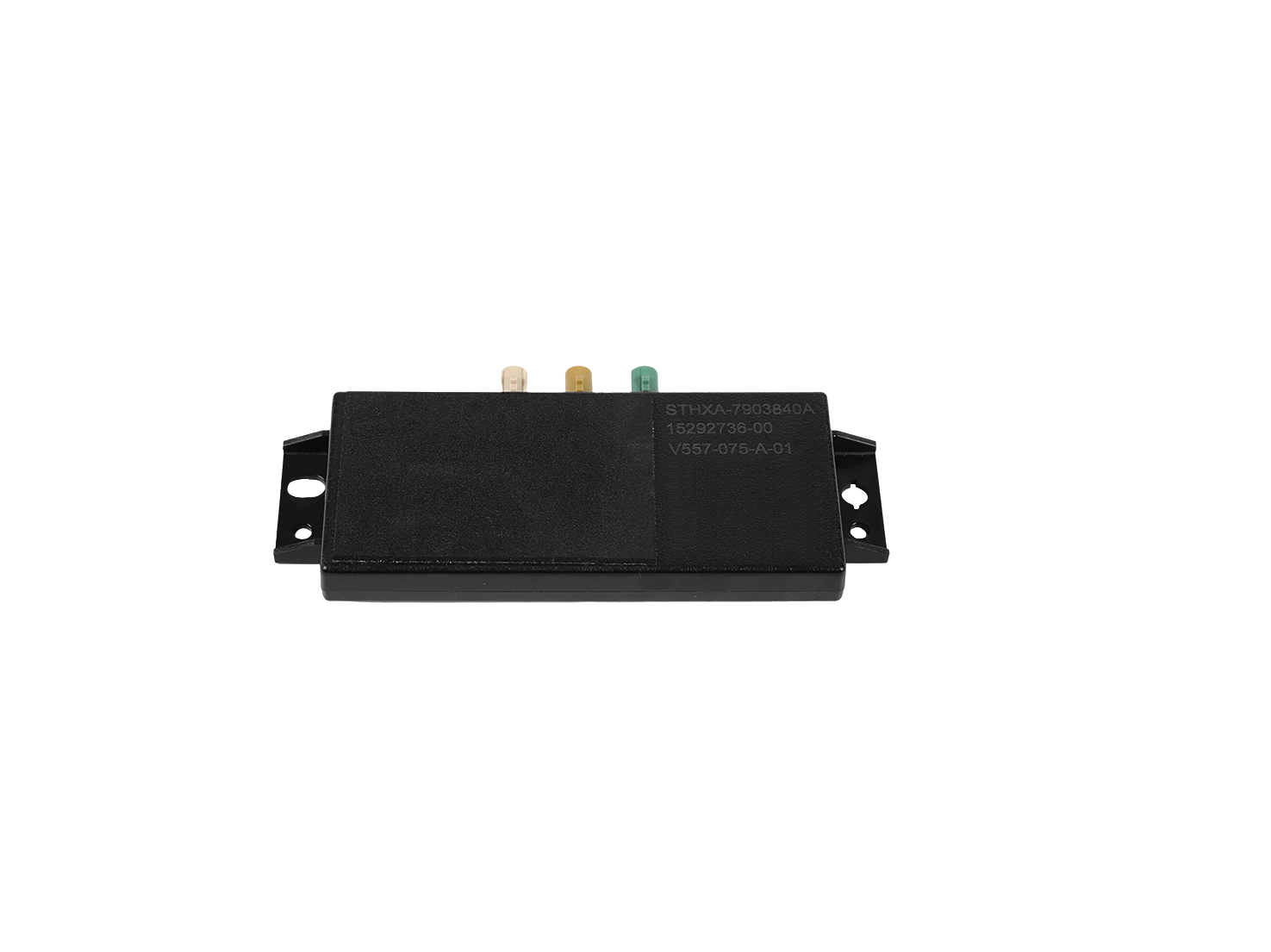

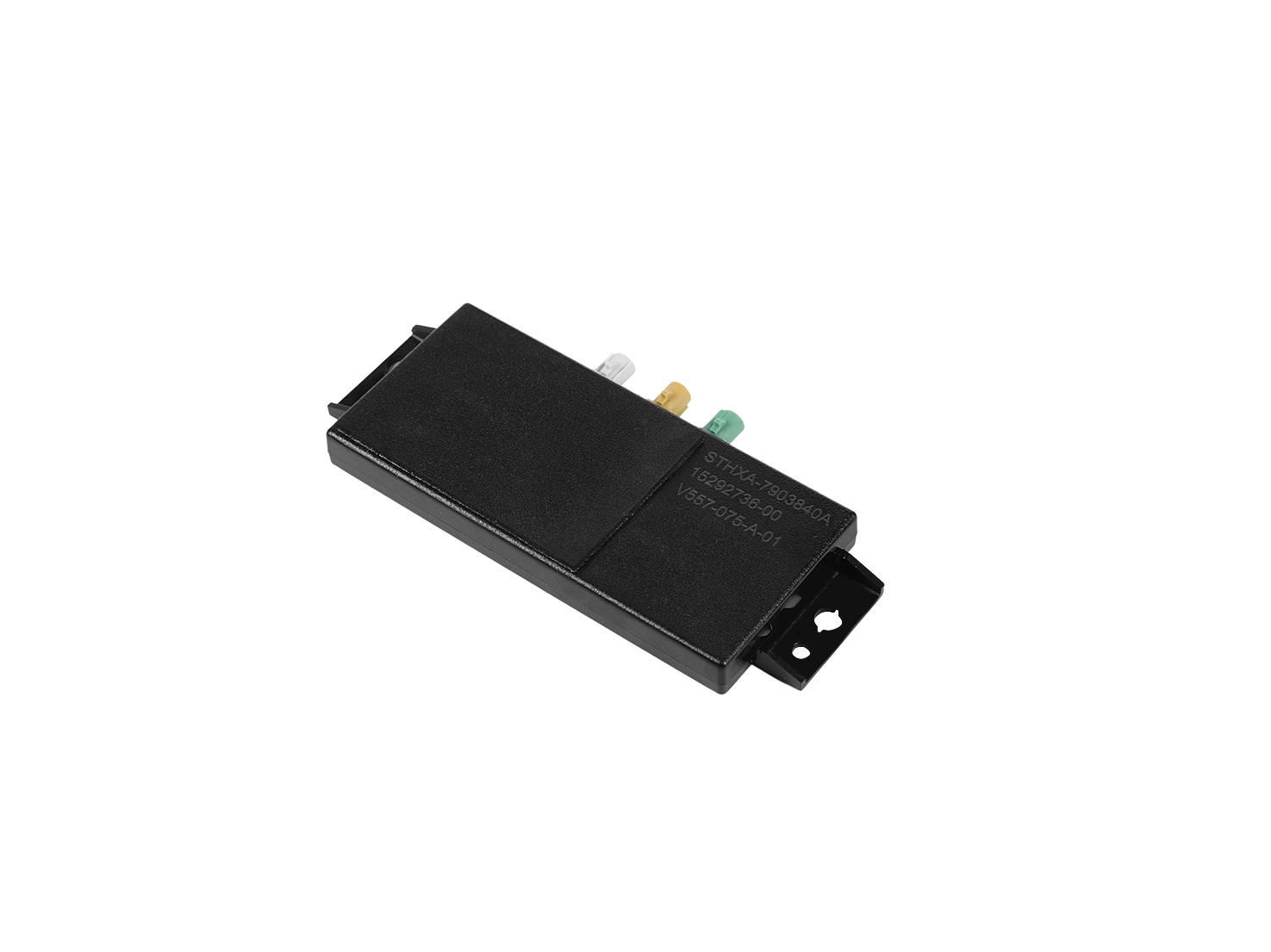

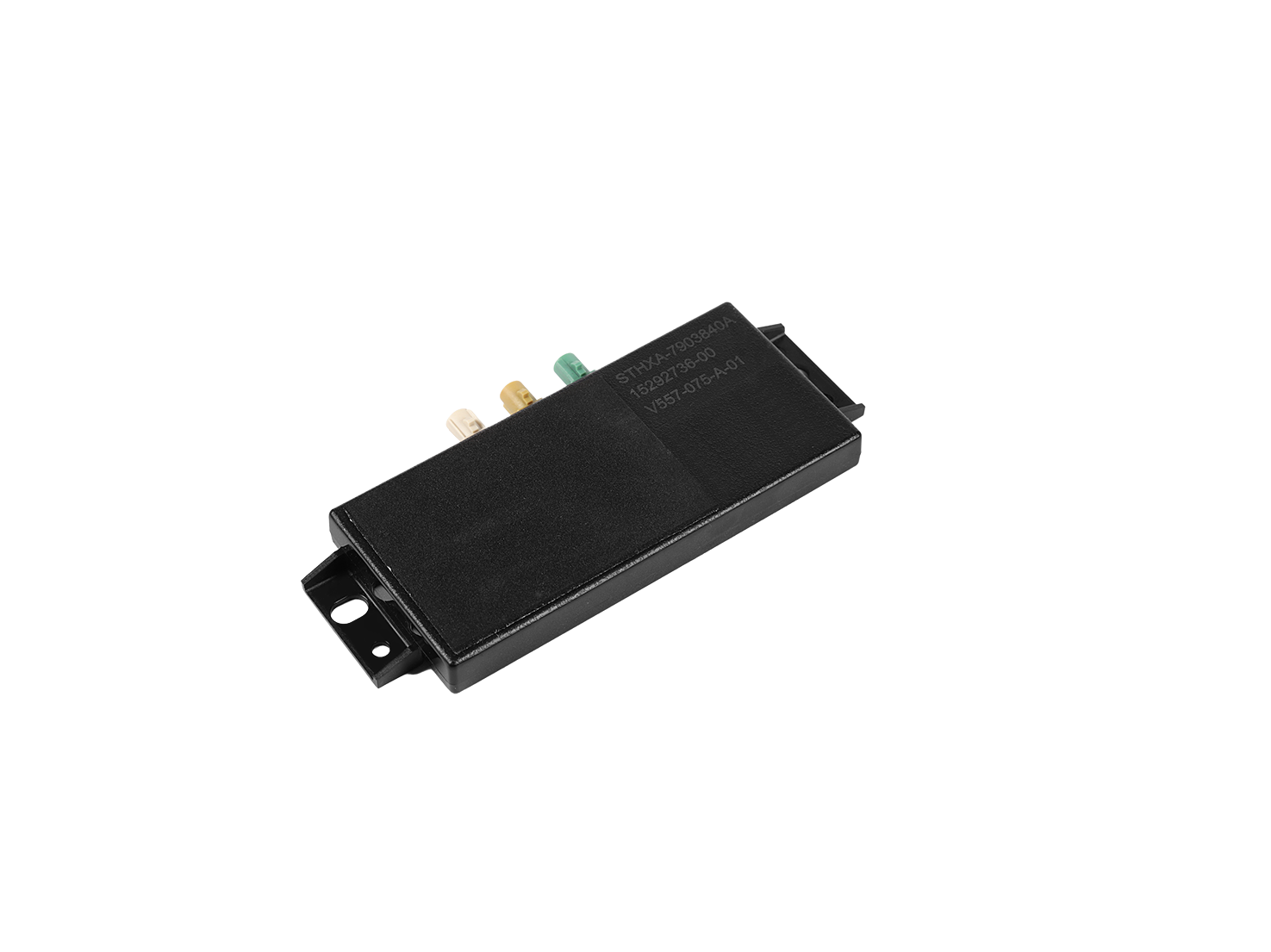

3-in-1 combination Antenna-5G, Wifi Antenna

2*5G LTE (700~960/1710~2690/3300~5000MHz)

1*WiFi （2400~2500/5150~5850MHz）

Connector: Fakra

Protection: IP52

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact3-in-1 combination Antenna-5G, Wifi Antenna
030cbf8d26718d0-2
e584efccdc5e369-2
0ebf5e75410d-2
d944e53782db2e7-2

Overview

The combined vehicle antenna covers  communication, meets the on-board T-BOX host equipment,



has the characteristics of multi-system compatibility and high-precision measurement, and is widely used in mapping, ocean survey, geological

Key Features

Anti-interference

To ensure stable operation in complex environments, this antenna is specially designed to reduce interference from other wireless devices.

combination antenna has a good isolation between antennas, ensuring that the signals between the antennas do not leak and do not interfere with each other, improving the overall performance of the antenna and reducing the influence of the antenna on the measurement error during measurement.



Specification

Function 5G Antenna Part (Main) 5G Antenna Part (Div) Wi-Fi Antenna Part
Frequency Range 700~960/1710~2690/3300~5000MHz 700~960/1710~2690/3300~5000MHz 2400~2500/5150~5850MHz
V.S.W.R ＜3/＜2.5/<2.5 ＜3/＜2.5/<2.5 ＜2/＜2
lmpedance 50±3Ω 50±3Ω 50±3Ω
Polarization Linear Linear Linear
Isolation ≥10dB ≥10dB ≥10dB



Environmental Requirements
(1) Operating temperature  -40℃ ~ +85℃
(2) Storage temperature -40℃ ~ +90℃
(3) Protection grade IP52 (after vehicle assembly)

Applications

Various Car, Caravan, Enginering Vehicles, Agricultural vehicles, and ect.

Overview

Key Features

Specification

Applications
