首页图标Home >  Product > Vehicle Antenna > On-board intelligent network antenna
679844fa2007378-2
8daf23365eb7bcb-2
dc0362cd60e5dd6-2
Vehicle Antenna

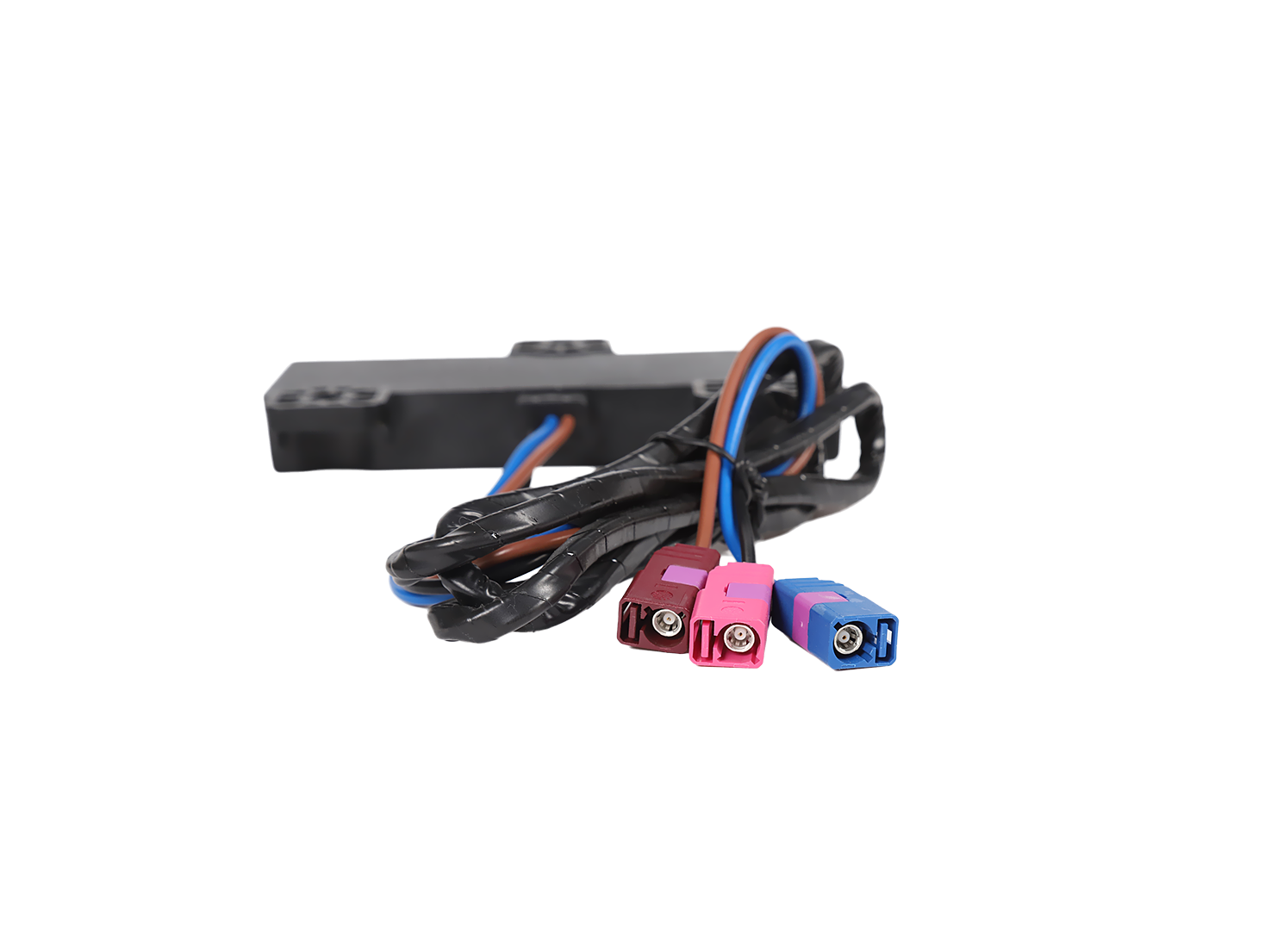

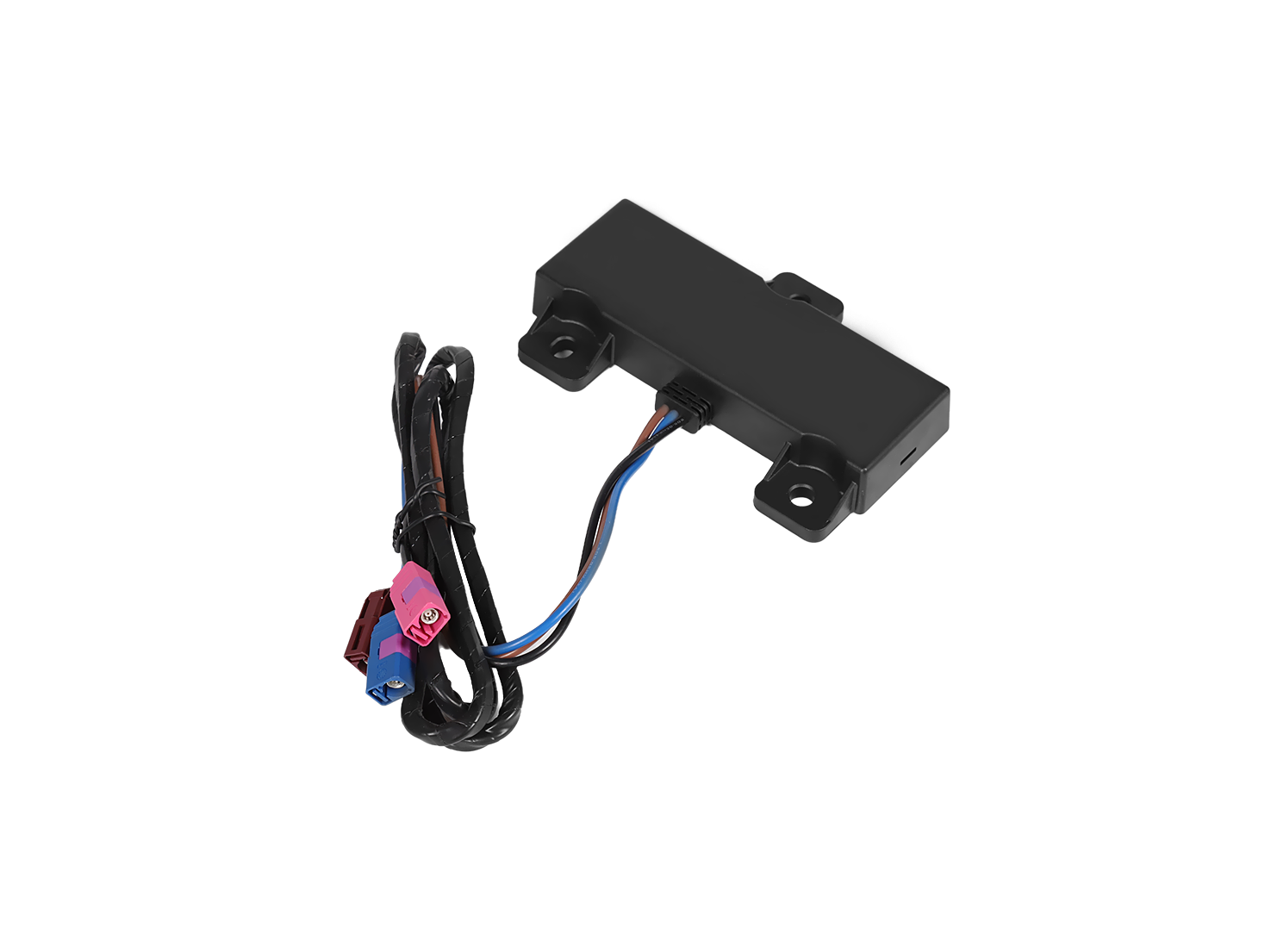

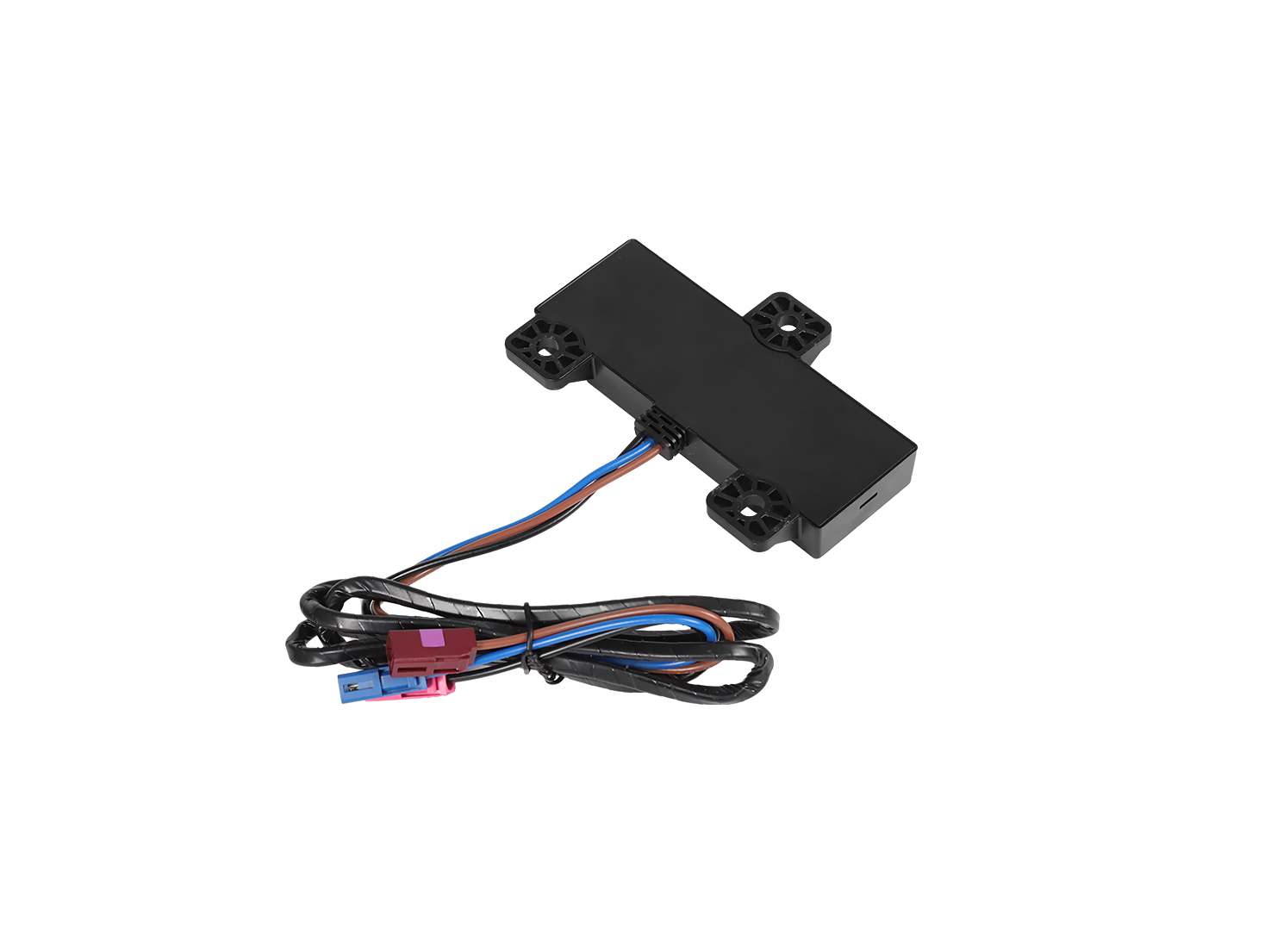

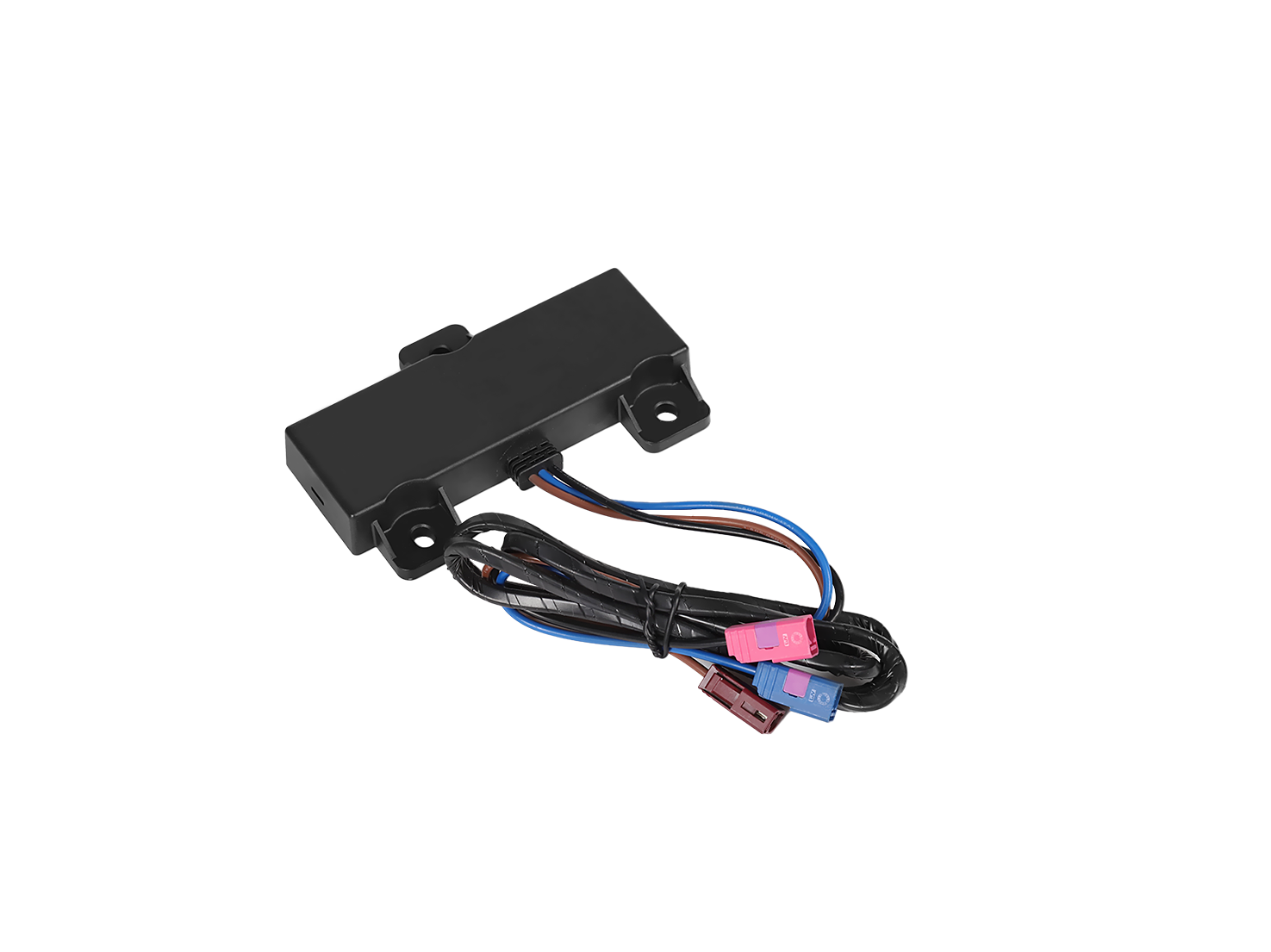

3-in-1 combination Antenna- 4G/ LTE, GPS Antenna

2*4G LTE ( 824~960/1710~2170/2300~2690MHz)

1*GPS L1,BDS L1

Connector: Fakra or Customize

Protection: IP52

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact3-in-1 combination Antenna- 4G/ LTE, GPS Antenna
f6a694748130ce4-2
679844fa2007378-2
8daf23365eb7bcb-2
dc0362cd60e5dd6-2

Overview

The combined vehicle antenna covers GPS L1, BDS second-generation B1/, GLONASS L1, 4G communication, meets the on-board T-BOX host equipment,

has the characteristics of multi-system compatibility and high-precision measurement, and is widely used in mapping, ocean survey, geological deformation monitoring and other fields.



Key Features

High performance

This combination antenna has built-in amplifiers and filters to enhance the received signal and reduce noise interferences.



Anti-interference

To ensure stable operation in complex environments, this antenna is specially designed to reduce interference from other wireless devices.



Multi-band Coverage

The antenna usually supports 4G network connection communication, while providing GNSS high-precision navigation functions.





Specification

Function 4G Antenna Part (Main) 4G Antenna Part (Div) GNSS
Frequency Range 824~960/1710~2170/2300~2690MHz 824~960/1710~2170/2300~2690MHz GPS L1、BDS B1
V.S.W.R ＜2.5/＜2.5/<2 ＜2.5/＜2.5/<2 ≤2.0:1
lmpedance 50±3Ω 50±3Ω 50Ω
Polarization Linear Linear RHCP
gain ≥2dBi ≥2dBi ≥0dBi
Isolation ≥10dB ≥10dB ≥10dB



GPS amplifier Characteristic
Working voltage 3V∽5V
Working current 9mA±3mA@3.3V
Output gain 28±3dB
Output impedance 50±3Ω
Output standing wave ratio ≤2.0:1
Noise factor ≤2dB
Environmental Requirements
(1) Operating temperature  -40℃ ~ +85℃
(2) Storage temperature -40℃ ~ +90℃
(3) Protection grade  IP52 (after vehicle assembly)

Applications

Suitable for all kinds of models (SUV/ car).Front and rear loading of passenger cars and engineering vehicles, data transmission, 4G communication, navigation and positioning, transmission, communication, navigation and positioning.

Industrial Internet of Things, Smart Factory.
