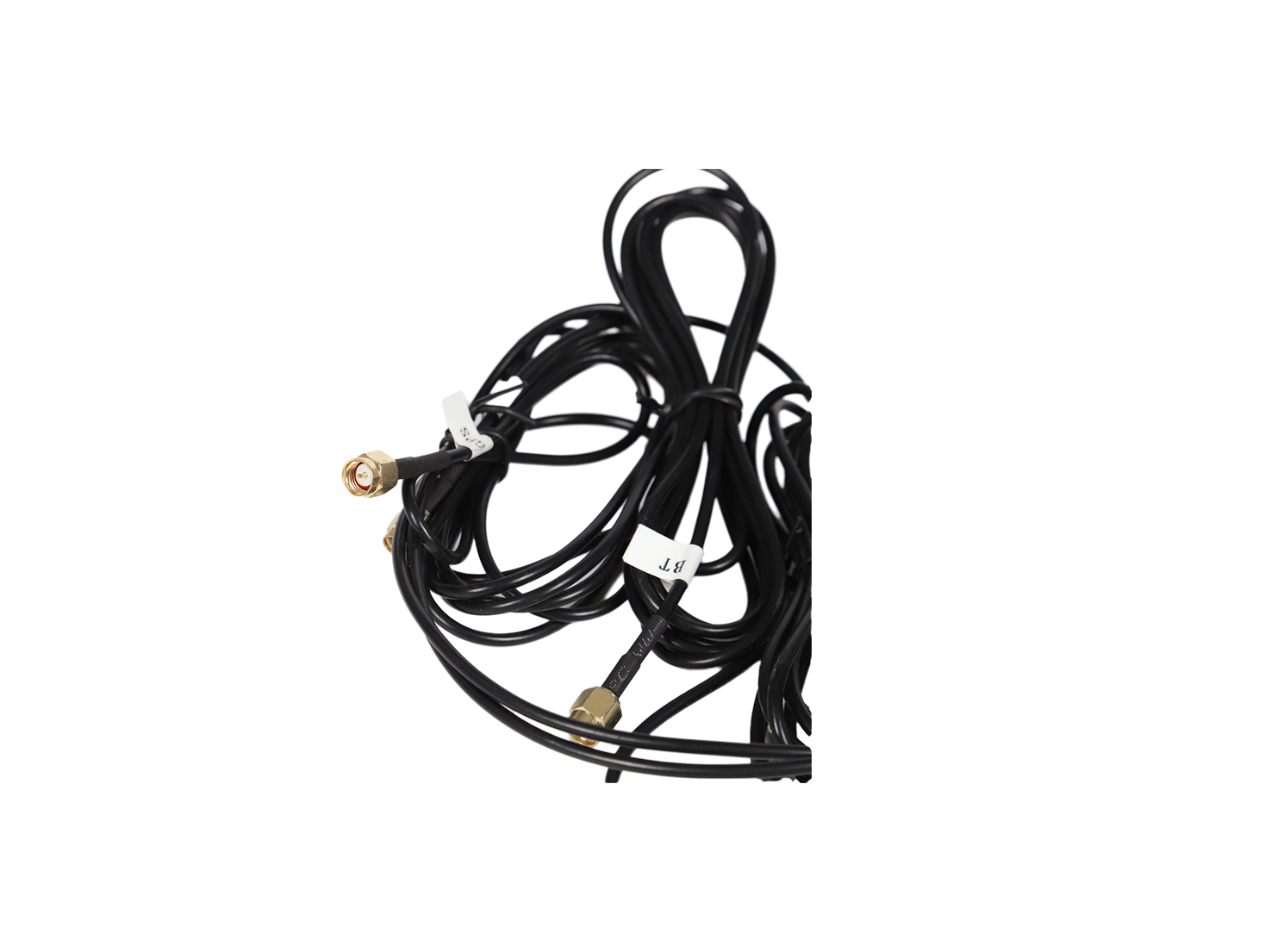

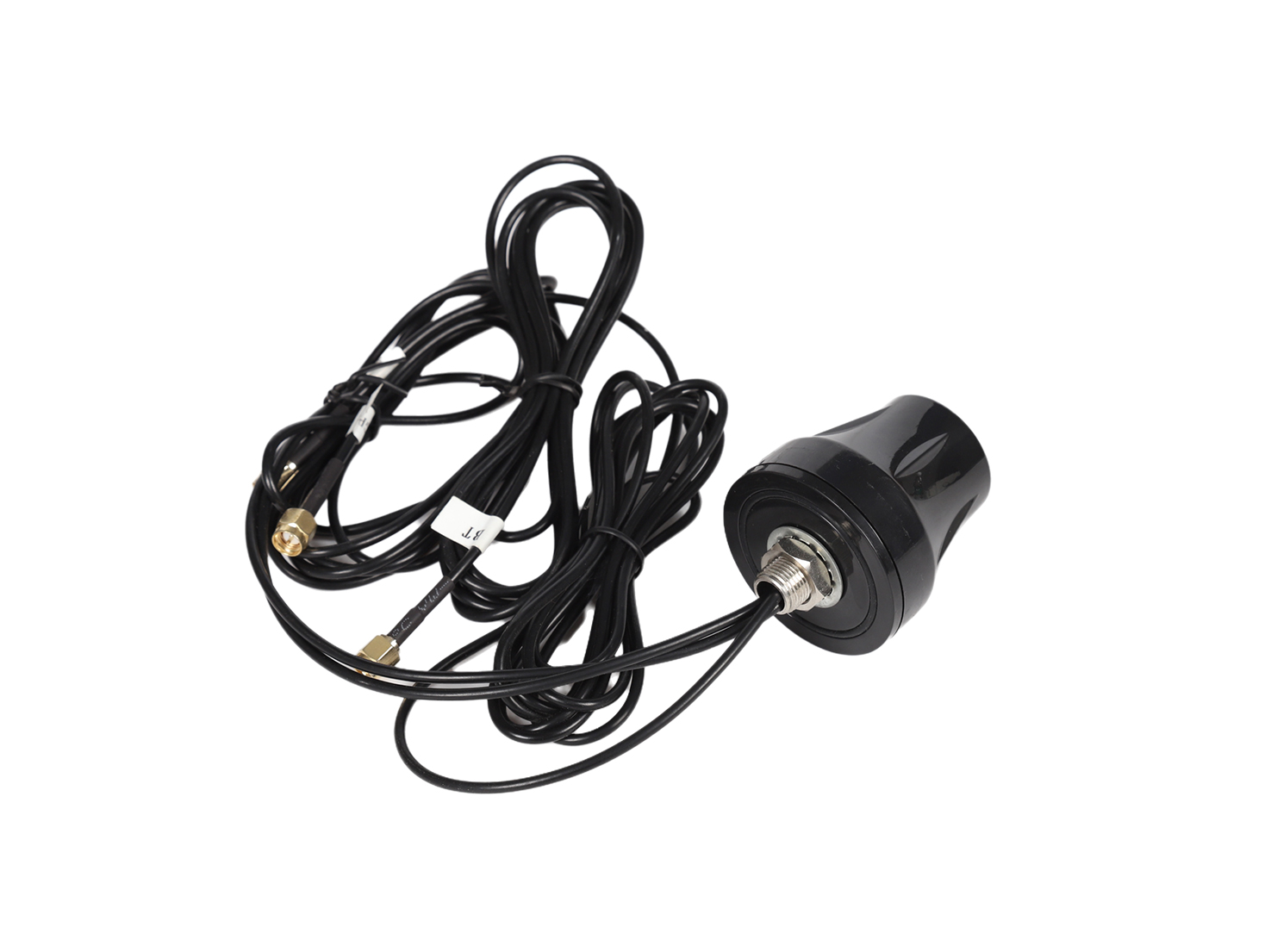

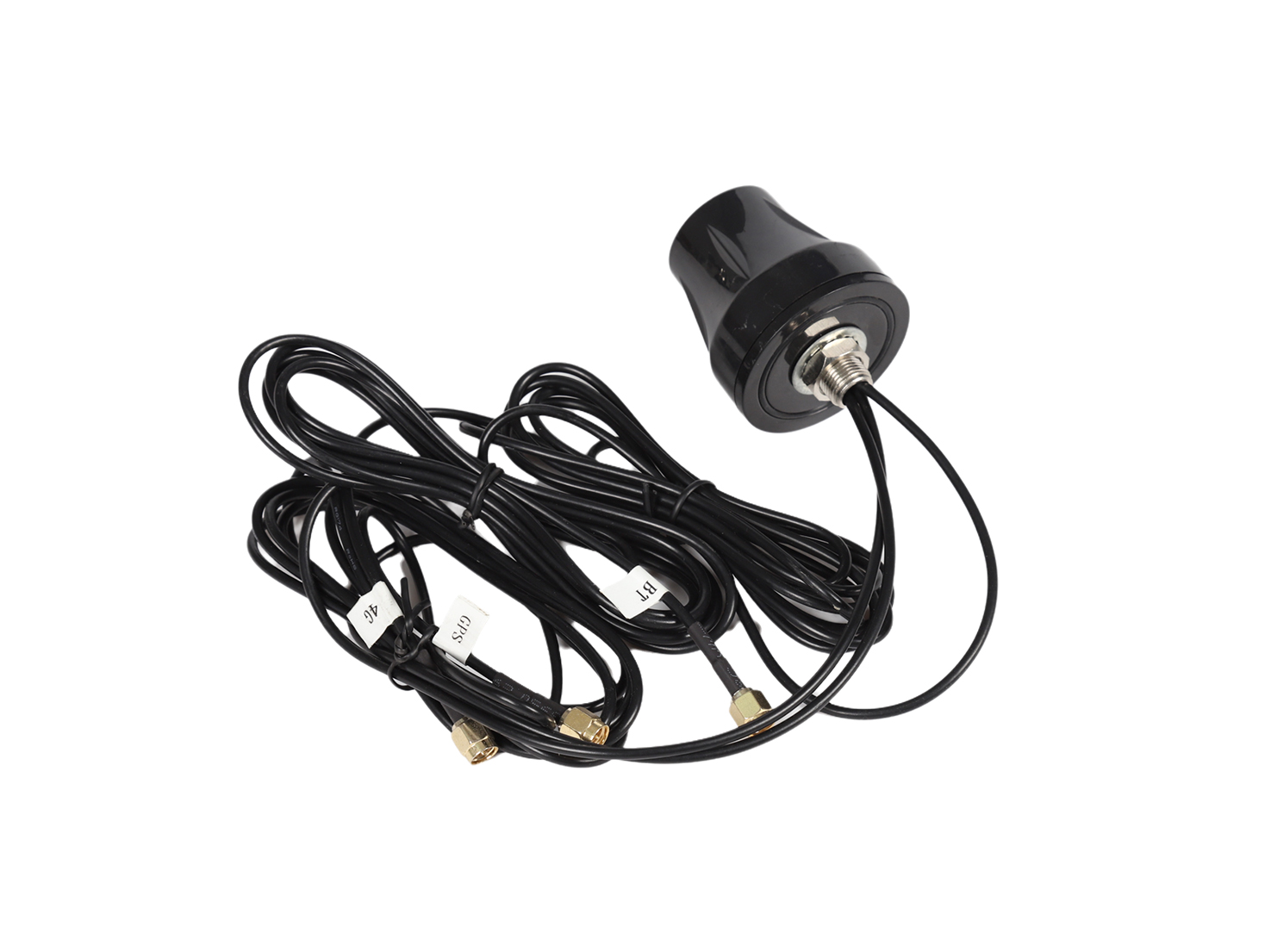

External rubber stick antenna

3-IN-1 4G+BT+GPS Combination Antenna

Frequency: GPS/BT(Wi-Fi)/4G

VSWR:＜2.0/＜2.5/ ＜3.0

Gain: ＜0.3dBi /＜-2.7dBi / ＜ 4.4dBi

Max. Efficiency: ＜42%/＜20%/＜41%

Application: Charging Pile, Vending Machine, ATM machine, Self-service all-in-one machine, smart parcel locker, various smart cabinet solution, and etc.

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact3-IN-1 4G+BT+GPS Combination Antenna
b4040dc1770a9d6
4e9260cced29894
16783561d8c496f
317825d8fae2fdb
13333ba76925060

Overview

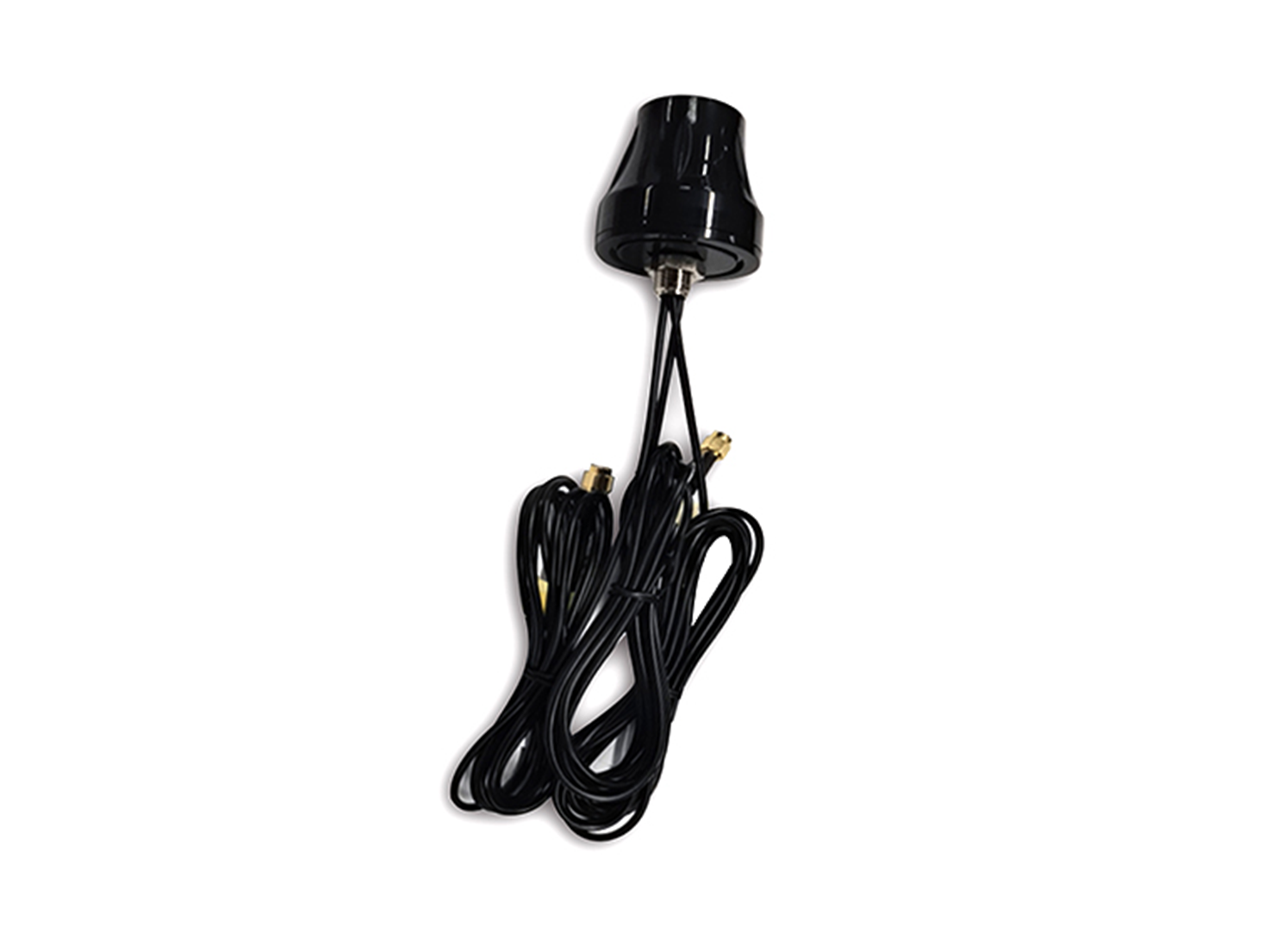

This product combines 3 different antennas in a mushroom-shaped housing. One 4G antenna is for data connection, covering the frequency bands 820-960MHz and 1710-2690MHz. Another antenna is 2.4G Bluetooth/Wi-Fi. The third antenna is a passive GPS antenna, which can meet basic positioning accuracy requirements.

Key Features

• Compact Size

This antenna has compact size, which can well save the installation space, and make the installation more easily.



• High integration

This 3-in-1 combination antenna is specially desing for application that require 4G， blue-tooth/wifi connection & GPS positioning function in one devices.



• Wide applicability

For now, our clients have used this antenna on Vending Machines, Sharing charging pile, vehicles. It can be widely be used on different smart city applications.

Specification

4G Antenna Wifi/BT Antenna GPS Antenna
(1) Frequency range: 820~960, 1710~2690 MHz



 2400-2500 MHz 1560-1580 MHz
(2) V.S.W.R: <3.0 <2.5 <2.0
(3) Impedance: 50Ω 50Ω 50Ω
(4) Gain: ＜ 4.4dBi ＜-2.7dBi ＜0.3dBi
(5) Efficiency (Max) 41% 20% 42%



Mechanical Specifications
(1) Size(mm) ∅50*48
(2) Connector Type SMA (Customize)
(3) Radome Color Black
(4) Mounting Type Stud installation
Environmental Requirements
(1) Operating temperature  -30℃~+65℃
(2)  Storage Temperature  -30℃~+75℃

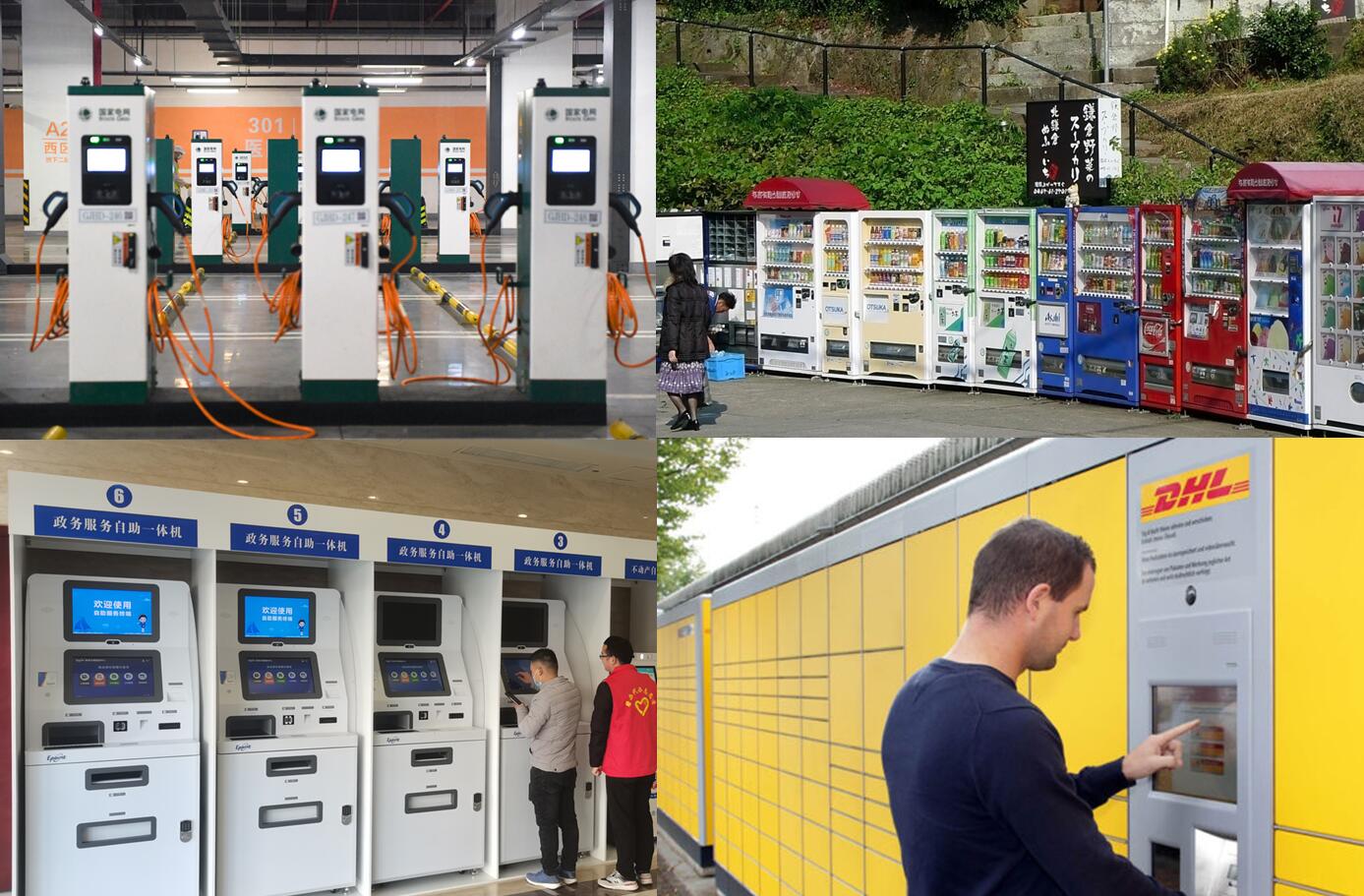

Applications

Charigng Pile, Vending Machine, ATM machine, Selfservice all-in-one machine, smart parcel locker, various smart cabinet solution
