CPE antenna

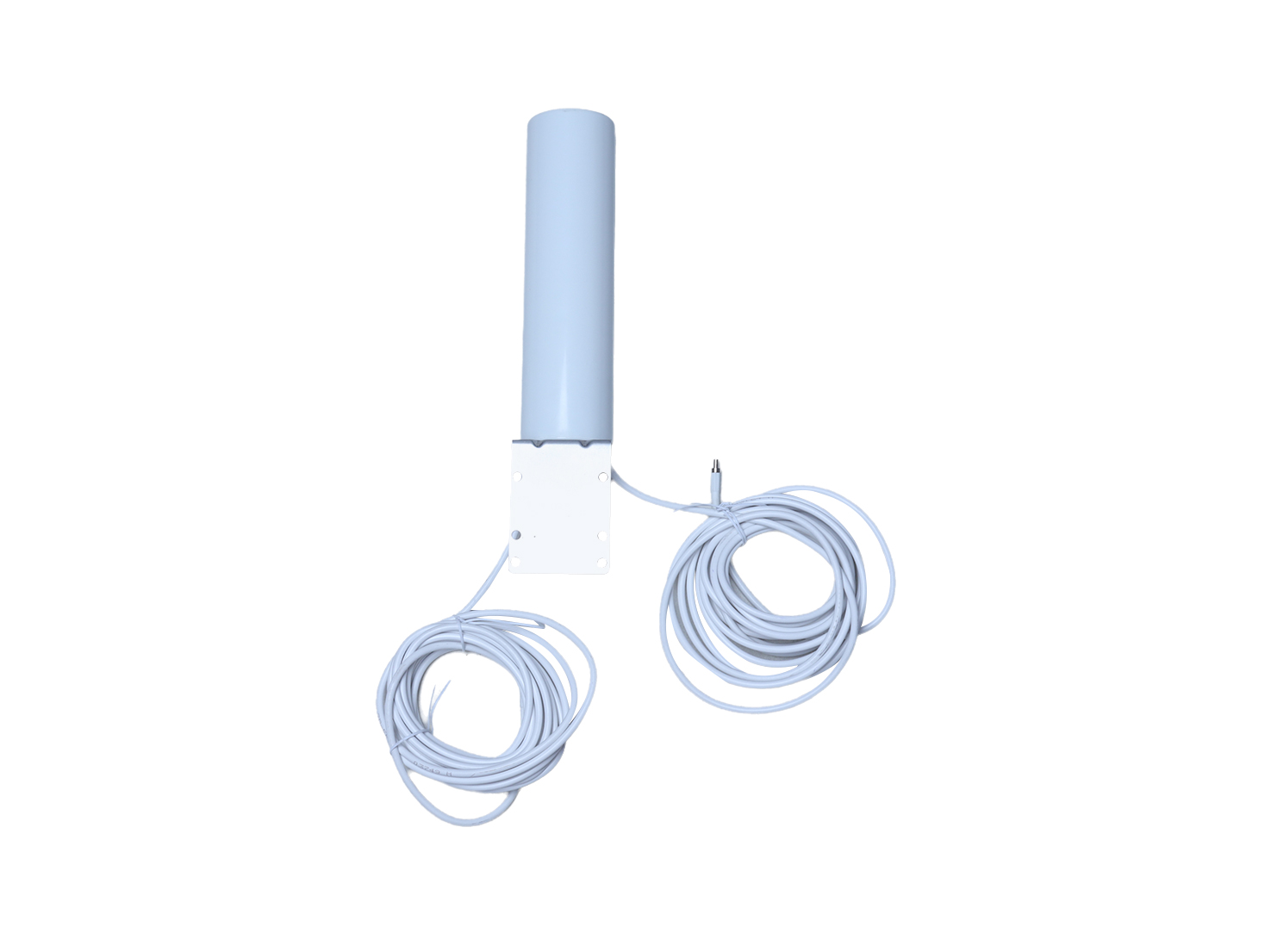

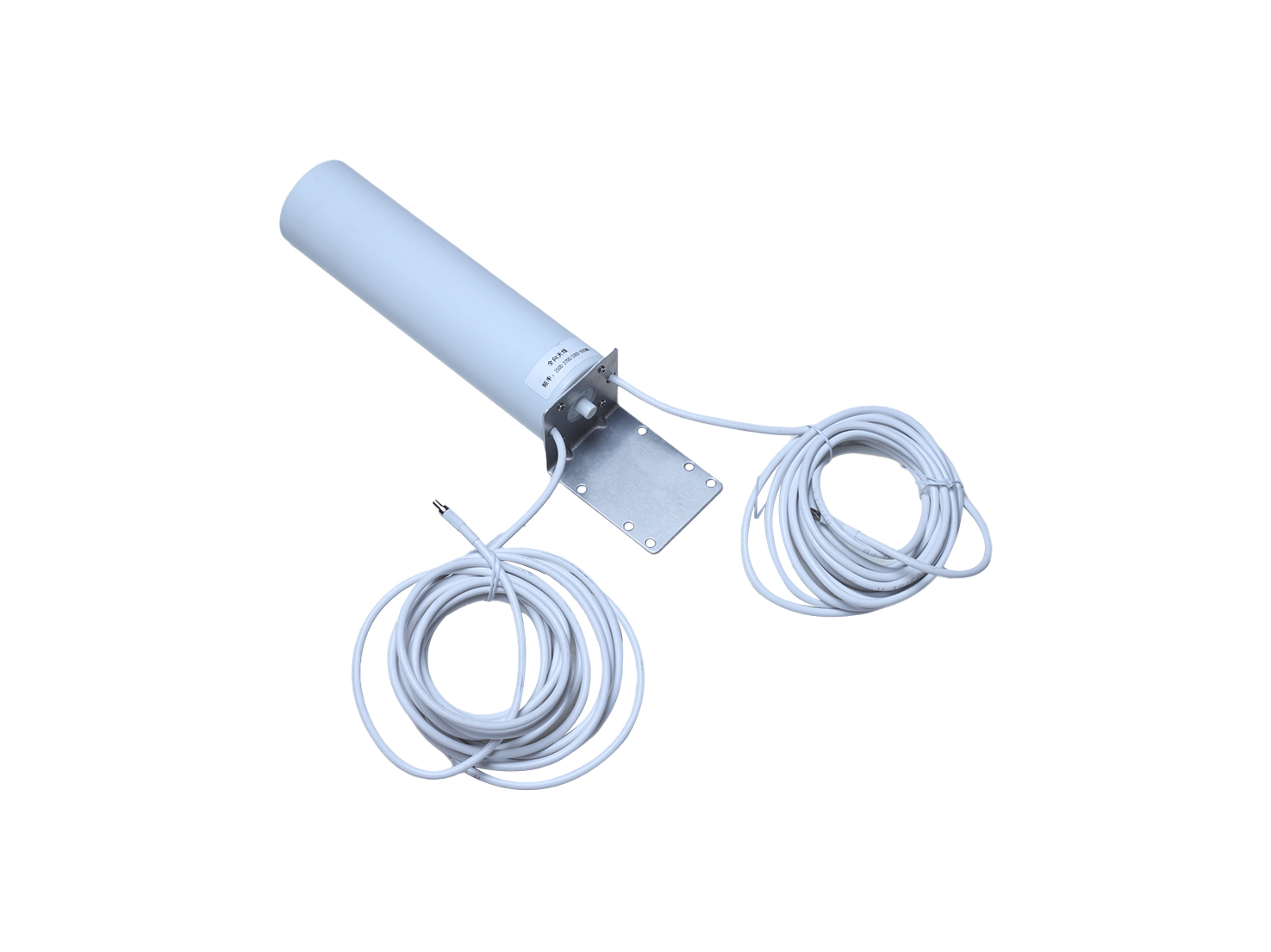

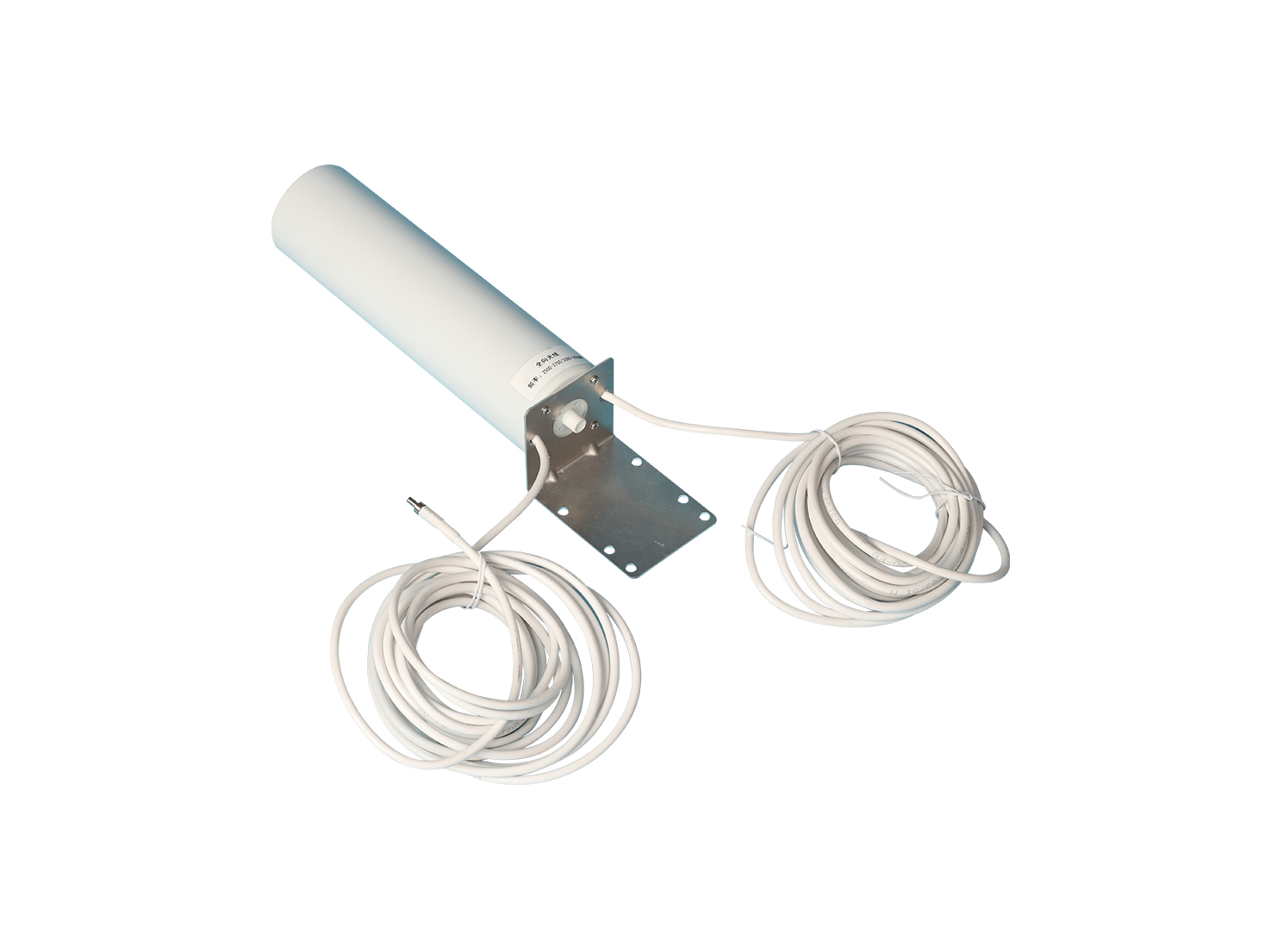

2G/3G/4G/5G Outdoor Omnidirectional Antenna (Dual port)

Frequency range（MHz）: 2500-2690MHz / 3300-5000MHz

VSWR: ≤2.5

Gain（dBi）: 2dBi@2500-2690MHz / 6dBi@3300-4200MHz

Out-of-roundness: <2dBi

Polarization: Vertical polarization

Lightning protection: DC ground

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact2G/3G/4G/5G Outdoor Omnidirectional Antenna (Dual port)
7c6153669d08abe
0589695a2552
75d567c7ebbe941
5da4b5e3abf5b1e
c02975579e9bb85
62e7340561e45ce
6cc572911753

Overview

The antenna covers 2G/3G/4G/5G multiple frequency bands. By setting up and installing outdoor connection CPE, it brings outdoor mobile signals into indoor areas to achieve high-speed wireless Internet access, solve the problem of weak indoor signals and inability to access the Internet, and provide continuous WiFi coverage.

Key Features

• Broadband band

• High gain

•Small size

• Easy to install and erect

Specification

Electrical specification
Frequency range（MHz）

2500-2690MHz

3300-5000MHz
VSWR ≤2.5
Gain（dBi） 2dBi@2500-2690MHz

6dBi@3300-4200MHz
out-of-roundness <2dB
Polarization Vertical polarization
Lightning protection DC ground
Mechanical specification
Dimensions（mm） Φ60mm×250mm
Number of inputs 2
Connector types TS-9
Wall|pole mount included Yes
Radome material UV-protect plastic
Operating temperature（℃） -40°C to + 55°C

Applications
