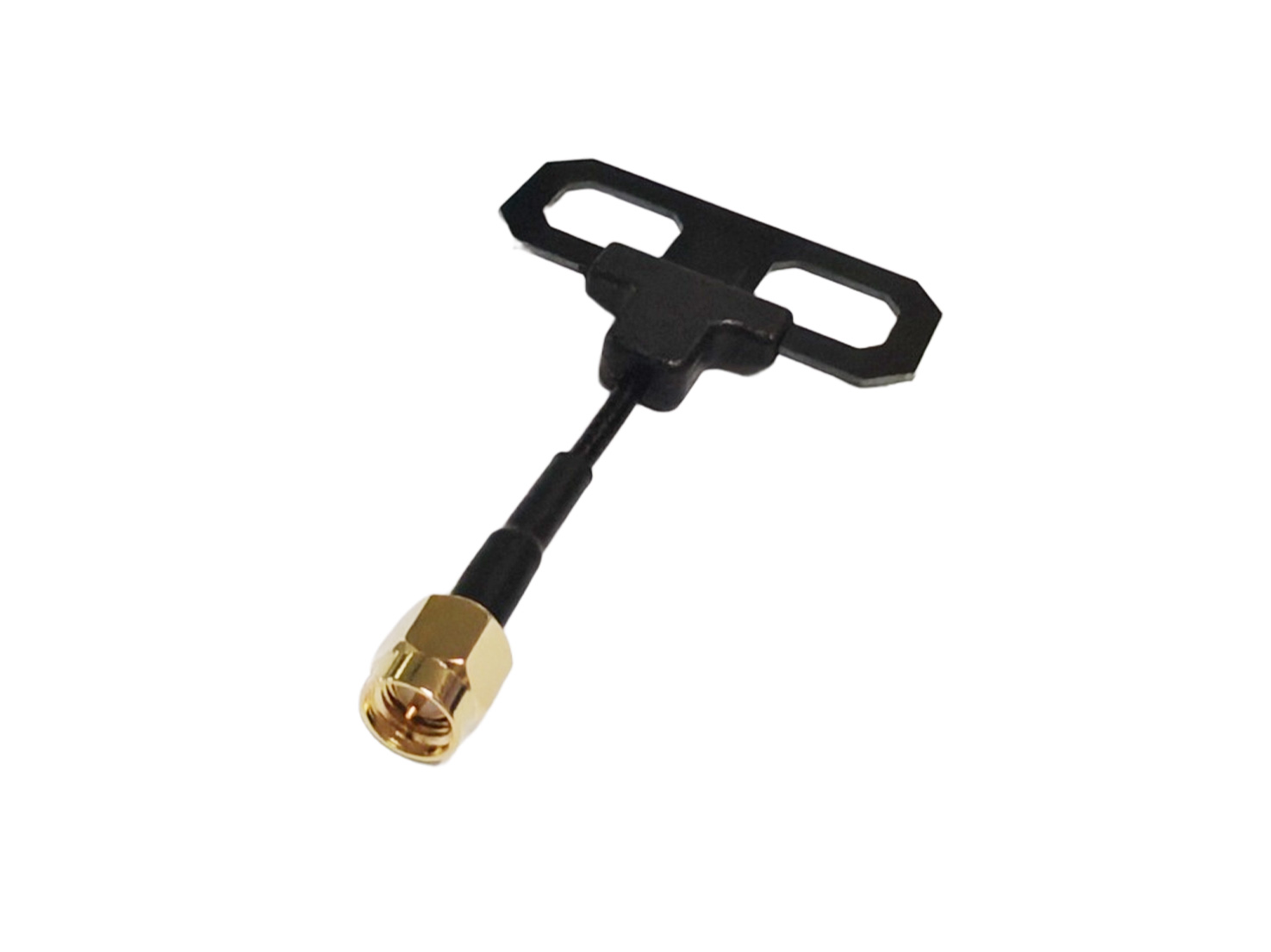

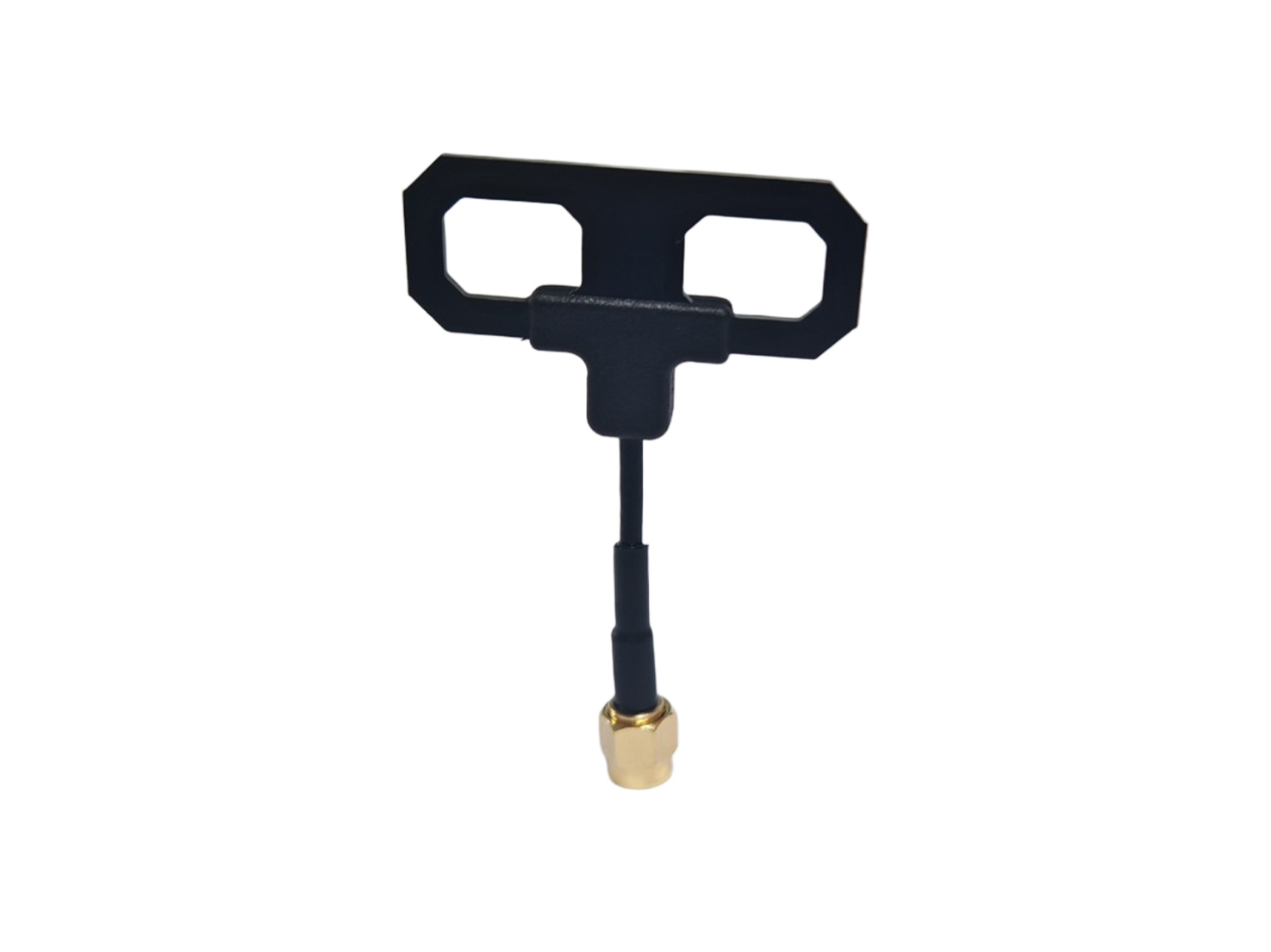

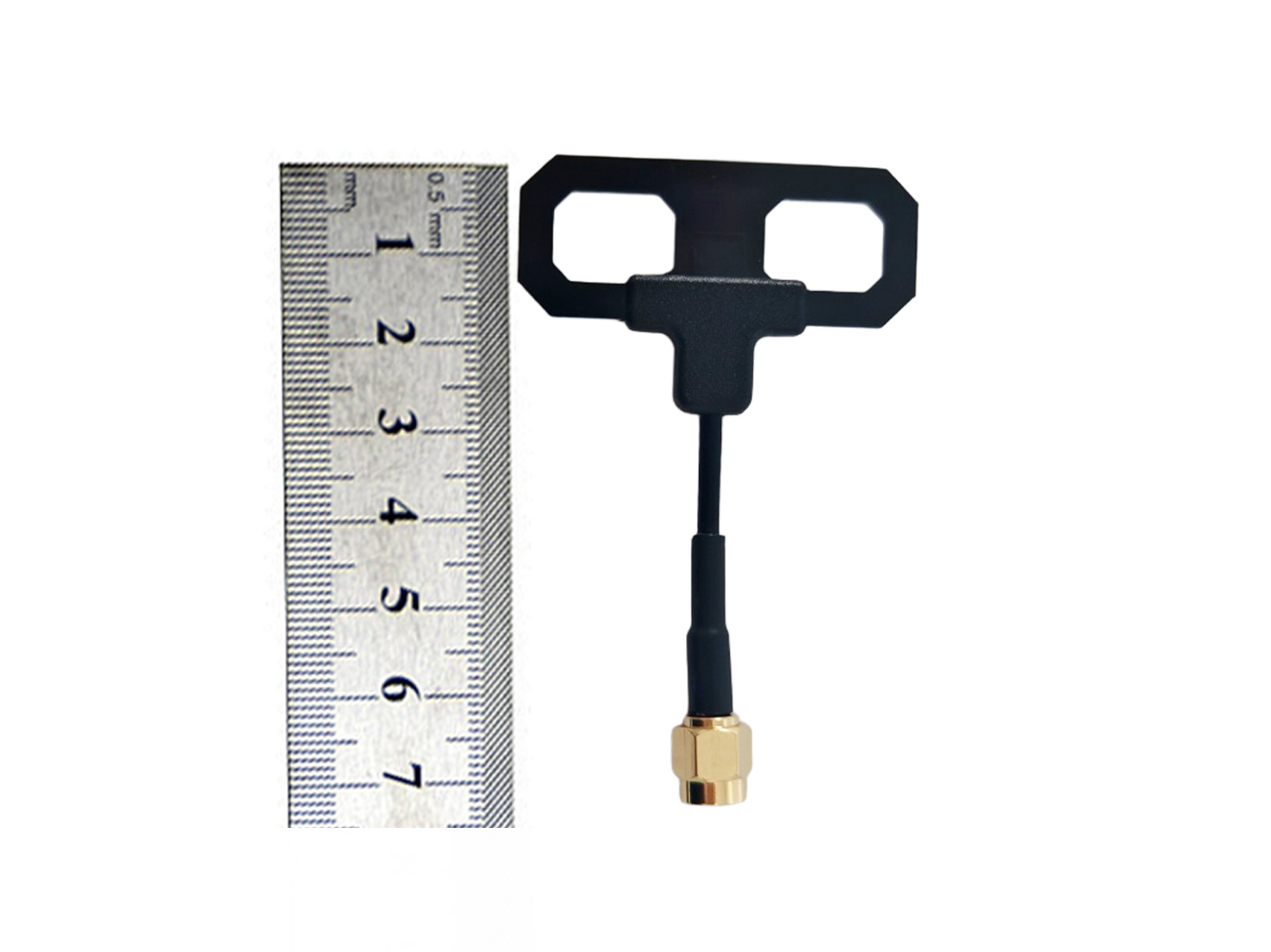

Satcom Antenna

2.4G 6dBi Black Annular Image Transmission Antenna L=40mm

External antenna /50Ω/2400-2500MHz/6.0dBi±0.5/RG086 black wire L=40mm/SMA male head male pin gold-plated/black ring image transmission antenna

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact2.4G 6dBi Black Annular Image Transmission Antenna L=40mm
2987c707bca9251
7d0920986b073f8
a863bfd96eb7310

Overview

External antenna /50Ω/2400-2500MHz/6.0dBi±0.5/RG086 black wire L=40mm/SMA male head male pin gold-plated/black ring image transmission antenna

Specification

Electrical parameters
Frequency

2400-2500MHz
Impedance 50Ω
S.W.R. ≤2.0
Antenna Gain 6.0dBi±0.5
Admitted Power 50W
Radiation Directivity
Polarization Vertical polarization + horizontal polarization
Return Loss -9.2dB MAX
Mechanical parameters
Antenna Colour black
RF Cable Model RG086，black
Connect Type The SMA male head and male needle are gold-plated
Operating/ Storage Temperature
Operating Temperature -40~85℃
Storage Temperature -40~85℃

Overview

Specification

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)
