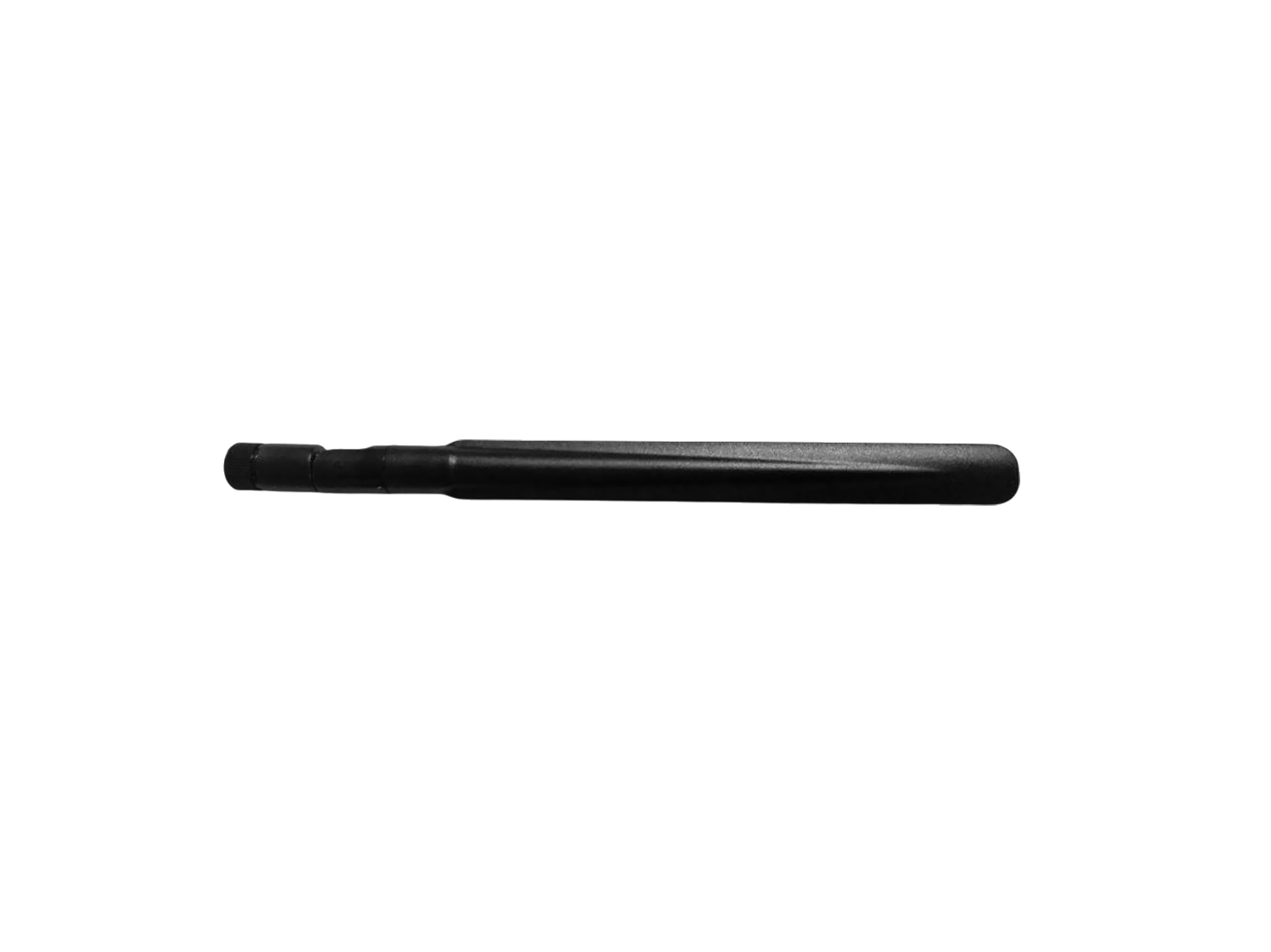

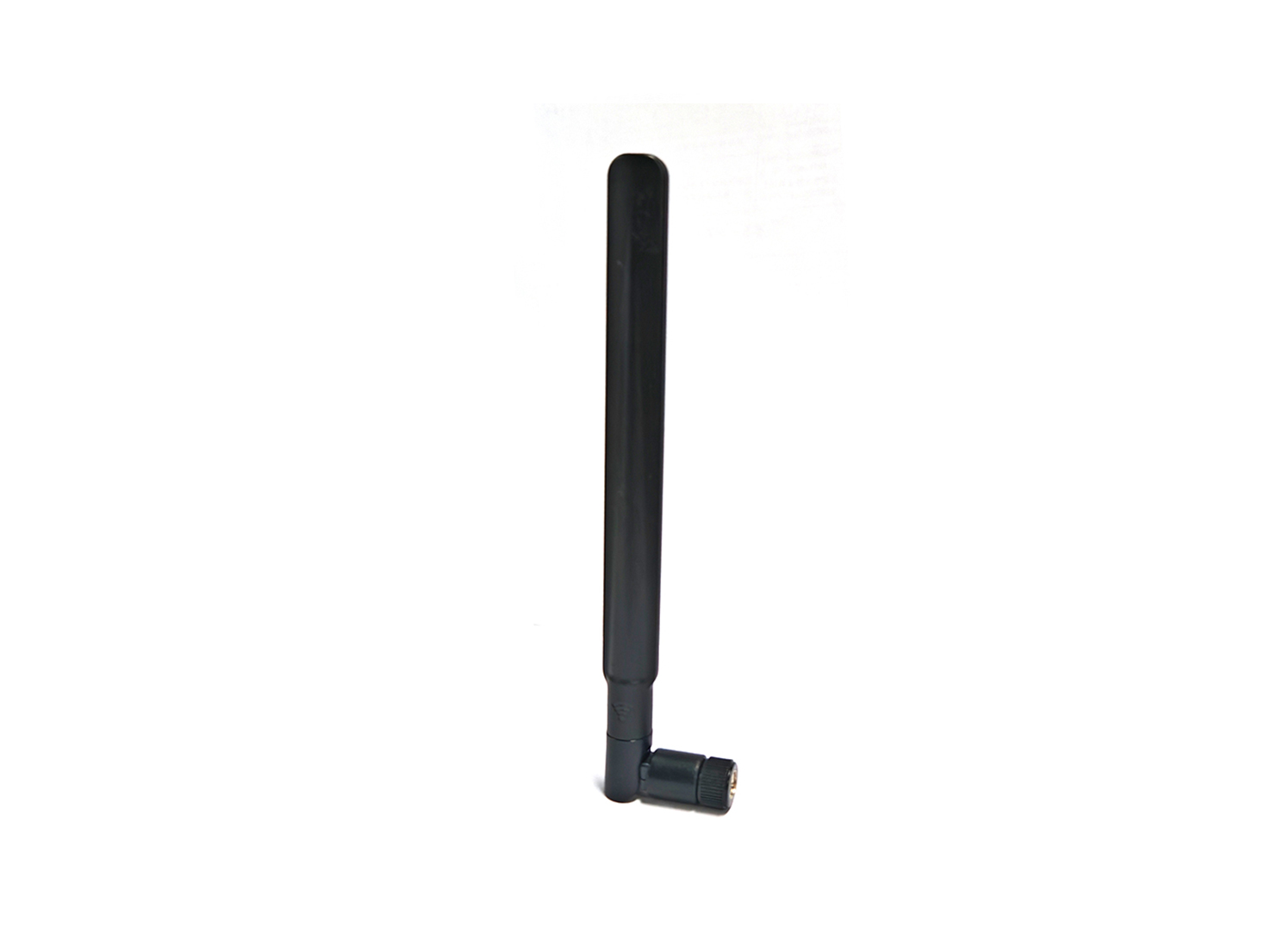

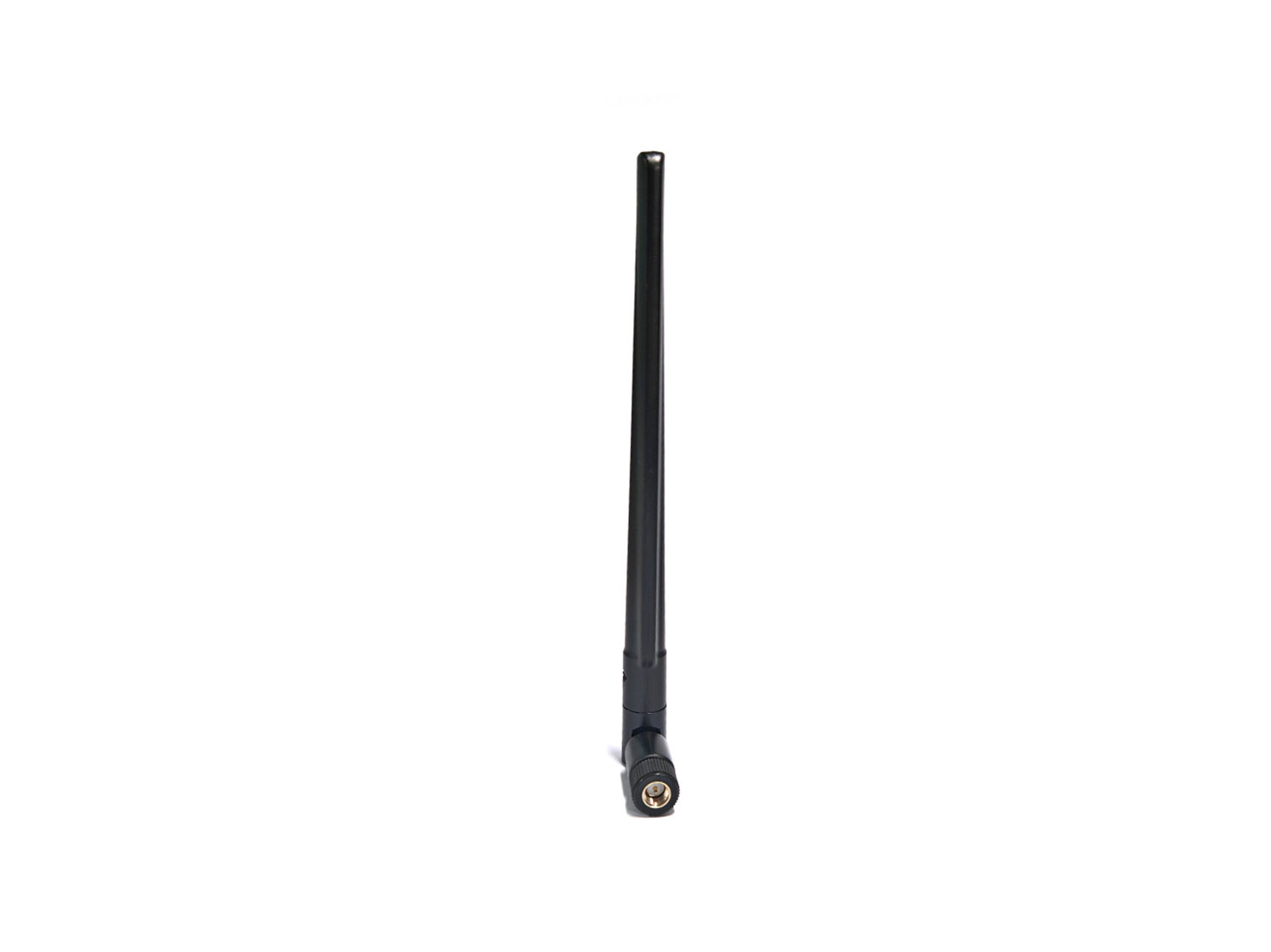

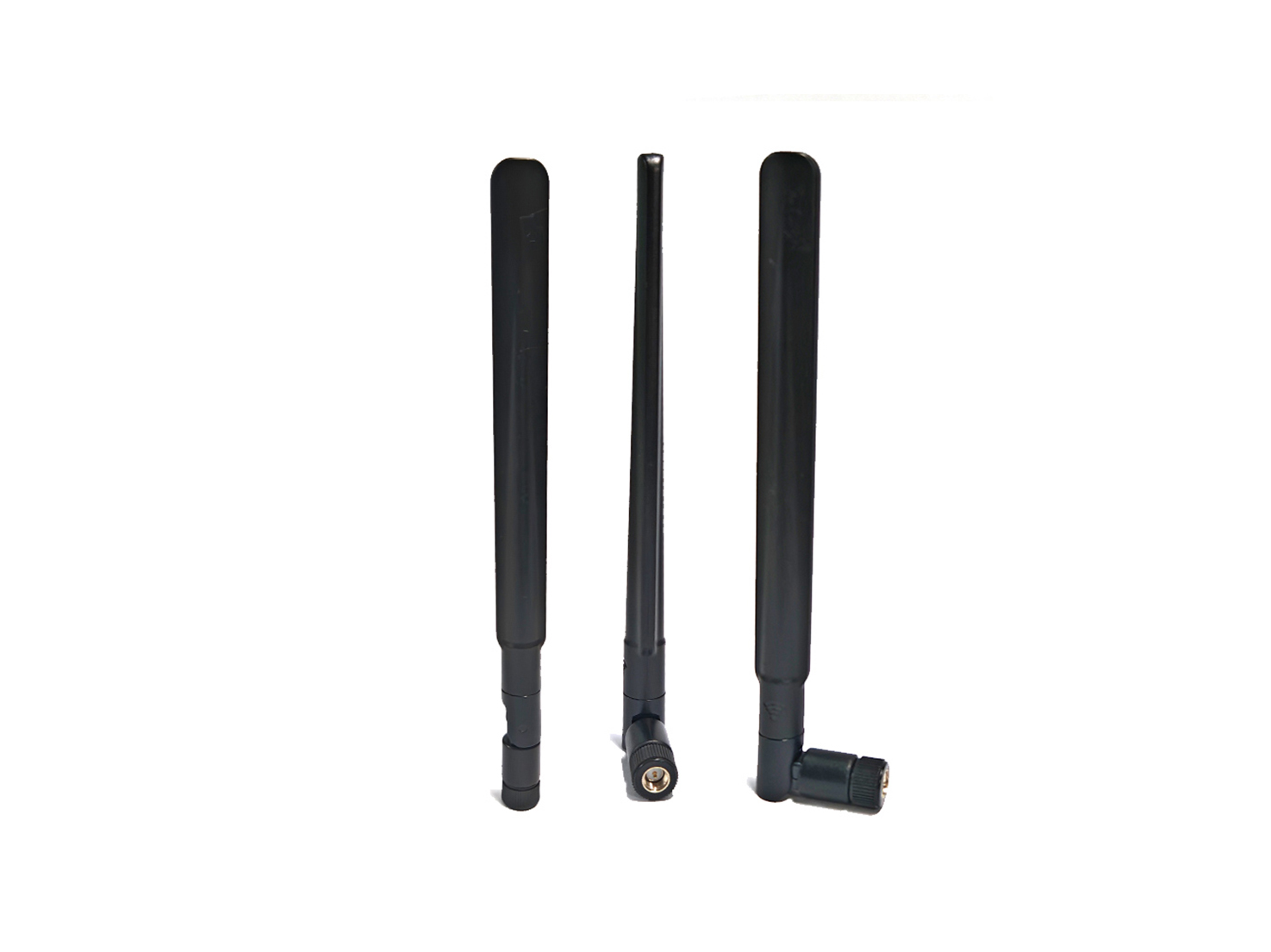

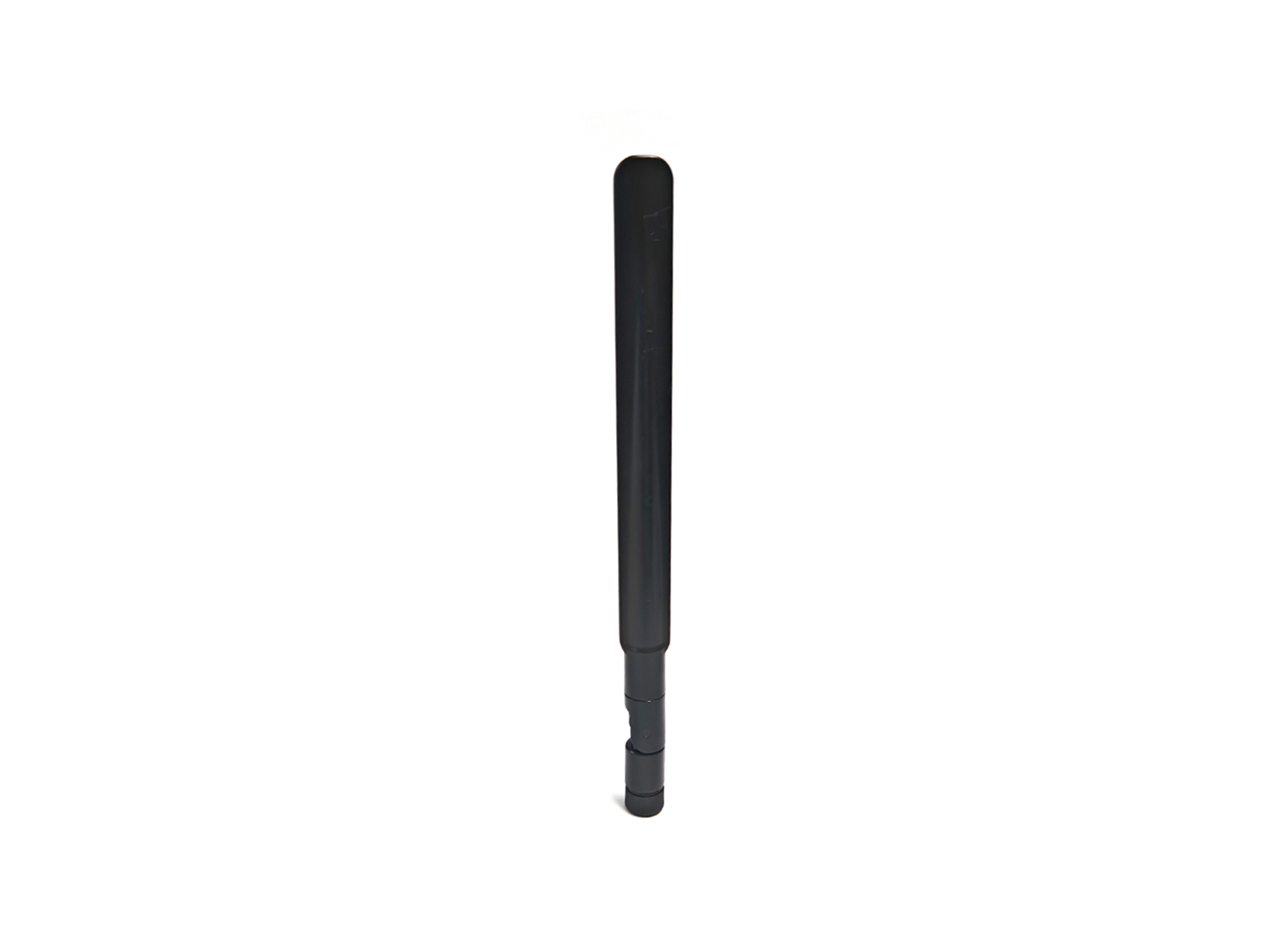

External rubber stick antenna

2.4 And 5.8GHz Wifi Antennas Dual WiFi Glue stick Antenna

Frequency Range: 2400-2500MHz/5150-5850MHz

Impedance: 50Ω

VSWR: ≤2.7

Gain: 5dBi

Power Capacity: 2w

Electric Strength test: 1KV

On and off the test: On

Polarization: Vertical

Radiation: Omni

Connector: SMA-Male

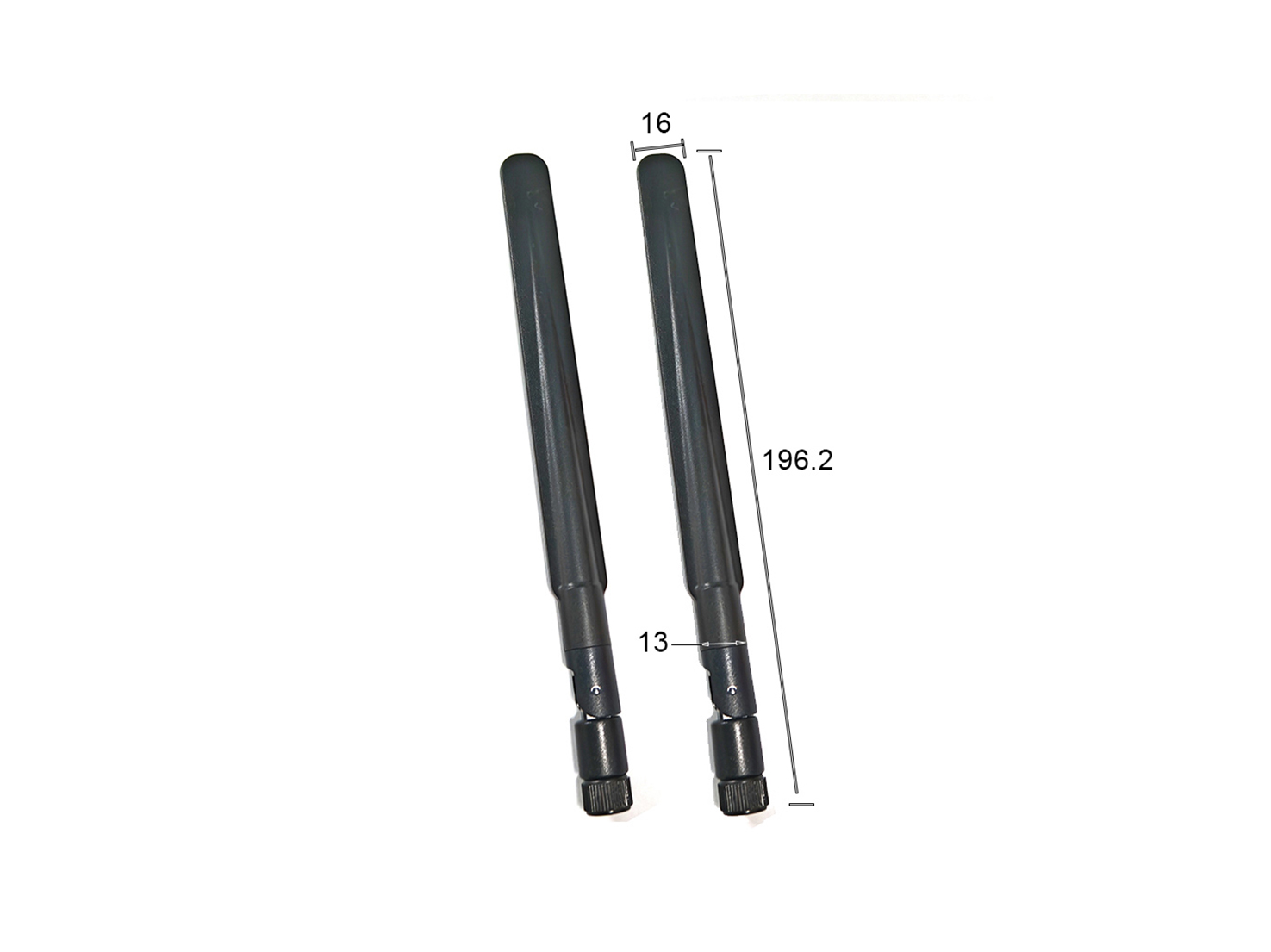

Length: 196.2±2mm

Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact2.4 And 5.8GHz Wifi Antennas Dual WiFi Glue stick Antenna
91761b19b4e20bb
243fd175dc831d1
0bcf3546563ef8b
b1acc11fd600698
db1309251d609ff
646c1f2bddbc082
4d5272eed850079
0ee29b69121167d

Overview

As an innovative wireless communication solution, WiFi glue stick antenna is gradually changing our lifestyle. Its unique design and excellent performance make wireless network connection more stable and efficient. Whether at home, in the office or in public places, WiFi glue stick antenna can provide excellent network coverage, allowing people to enjoy high-speed and stable network services anytime, anywhere.

Key Features

• Improving signal quality

enhancing signal strength and stability, reducing signal attenuation and interference, making data transmission more reliable.



• Adapt to different environments

able to better penetrate obstacles, such as walls, and adapt to various complex indoor layouts.



• Improving transmission speed

Helps achieve higher data transmission speeds and improves network user experience.

Specification

Frequency Range 2400-2500MHz 5150-5850MHz
Impedance 50Ω 50Ω
Gain 5dBi 5dBi
Power Capacity 2w 2w
Electric Strength test 1KV 1KV
Polarization Vertical Vertical
Radiation Omni Omni
Connector SMA- Male SMA- Male
Length 196.2±2mm 196.2±2mm
Coaxial cable RG-178 Tansparent RG-178 Tansparent
Salt-spray test 24H 24H
Working Temp. -30℃~+65℃ -30℃~+65℃
Storage Temp

-30℃~+75℃

-30℃~+75℃

Applications


Overview

Key Features

Specification

Applications

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)

Have questions?

VLG Technical Consultants are here to assist you!

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)+86 186 8871 1070

JT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag)Sales@vlg-solution.com

Leave a message

Related Products

4G lte Antenna (with Magnetic Base) Detail

External rubber stick antenna

4G lte Antenna (with Magnetic Base)

Frequency Range: 800-960MHz/1710-2690MHz Impedance: 50Ω VSWR: ≤2.5 / ≤3.0 Gain: 4.0dBi / 5.0dBi Efficiency: ≥75% / ≥65%

ZB220 Antenna 2400-2500MHz Waterproof And Drop-resistant Circular Polarization FPV Drone Video Transmission Gain Antenna Detail

External rubber stick antenna

ZB220 Antenna 2400-2500MHz Waterproof And Drop-resistant Circular Polarization FPV Drone Video Transmission Gain Antenna

...

5dBi Wi-Fi Glue stick Antenna Detail

External rubber stick antenna

5dBi Wi-Fi Glue stick Antenna

Frequency Range: 2400-2500MHz Impedance: 50Ω VSWR: ≤2.0 Gain: 5dBi Power Capacity: 2w Electric Strength test: 1KV On and off the test: On Polarization: Vertical Radiation: Omni Connector: SMA- Male Length: 195±3mm

Hunting camera Antenna 600-6000MHz Wide Band 5G Antenna Detail

External rubber stick antenna

Hunting camera Antenna 600-6000MHz Wide Band 5G Antenna

Frequency Range: 600-6000MHz Max Gain(dBi): 5.38dBi VSWR: ≤2.3

3-IN-1 4G+BT+GPS Combination Antenna Detail

External rubber stick antenna

3-IN-1 4G+BT+GPS Combination Antenna

Frequency: GPS/BT(Wi-Fi)/4G VSWR:＜2.0/＜2.5/ ＜3.0 Gain: ＜0.3dBi /＜-2.7dBi / ＜ 4.4dBi Max. Efficiency: ＜42%/＜20%/＜41% Application: Charging Pile, Vending Machine, ATM machine, Self-service all-in-one machine, smart parcel locker, various smart cabinet solution, and etc.

2.4 And 5.8GHz Wifi Antennas Dual WiFi Glue stick Antenna Detail

External rubber stick antenna

2.4 And 5.8GHz Wifi Antennas Dual WiFi Glue stick Antenna

Frequency Range: 2400-2500MHz/5150-5850MHz Impedance: 50Ω VSWR: ≤2.7 Gain: 5dBi Power Capacity: 2w Electric Strength test: 1KV On and off the test: On Polarization: Vertical Radiation: Omni Connector: SMA-Male Length: 196.2±2mm

4G Glue Stick Antenna Detail

External rubber stick antenna

4G Glue Stick Antenna

Frequency range: BAND-5/8/BAND1/3/38/39/40/41 Impedance: 50Ω VSWR: <2.5 / <3.0 Efficiency: >53% / >39% Polarization: Linear polarization / Vertical Radiation: Omnidirectional Connector: Cable (With IPEX connector)

Wi-Fi Glue Stick Antenna Detail

External rubber stick antenna

Wi-Fi Glue Stick Antenna

Frequency Range: 2400-2500MHz Impedance: 50Ω VSWR: ≤2.0 Gain: 2.0dBi Polarization:  Linear Connector: SMA-Male Length: 109±2mm

NB Glue Stick Antenna Detail

External rubber stick antenna

NB Glue Stick Antenna

Frequency Range: 880-960MHz Impedance: 50Ω VSWR: ≤5.5 Gain:  -5.0dBi Connector: SMA Length: 44±0.5mm Salt Spray Test: 48H

4G Circular Antenna Detail

External rubber stick antenna

4G Circular Antenna

Frequency range: 820-960MHz/1710-2690MHz Impedance: 50Ω VSWR: <2.5 Polarization: linear polarization/vertical Radiation: omnidirectional Connector: RP-SMA

4G+5G Glue Stick Antenna Detail

External rubber stick antenna

4G+5G Glue Stick Antenna

1.Frequency band： BAND-5/8/12/BAND1/3/38/39/40/41/BAND-N7-77-78-79 2.VSWR:≤6.0 ≤3.5 ≤3.5 3.Gain：≤0.1dBi  ≤ 1.7dBi ≤ 4.4dBi 4. Efficiency：≤40% ≤66% ≤75% 5.Polarization：Vertical 6.Connector：SMA male connector

6.4dBi 5G Glue stick Antenna Detail

External rubber stick antenna

6.4dBi 5G Glue stick Antenna

...

High-Gain 2.4G Wi-Fi Antenna for Strong Signal Coverage Detail

External rubber stick antenna

High-Gain 2.4G Wi-Fi Antenna for Strong Signal Coverage

Model:V2263-010-A-01 Frequency ：2400-2500MHz Bandwidth：100MHz Impedance：50 Ω VSWR：<2.0 Gain：≤3±1dBi Max. Efficiency：≤70% Polarization：Linear polarization/Vertical Radiation pattern：Omni-directional Connector：iPex-1 Length：66mm Salt Spray Test：48H Environment Parameter Operation Temperature：-40℃~105 ℃ Storage Temperature：-30℃~70℃
