CPE antenna

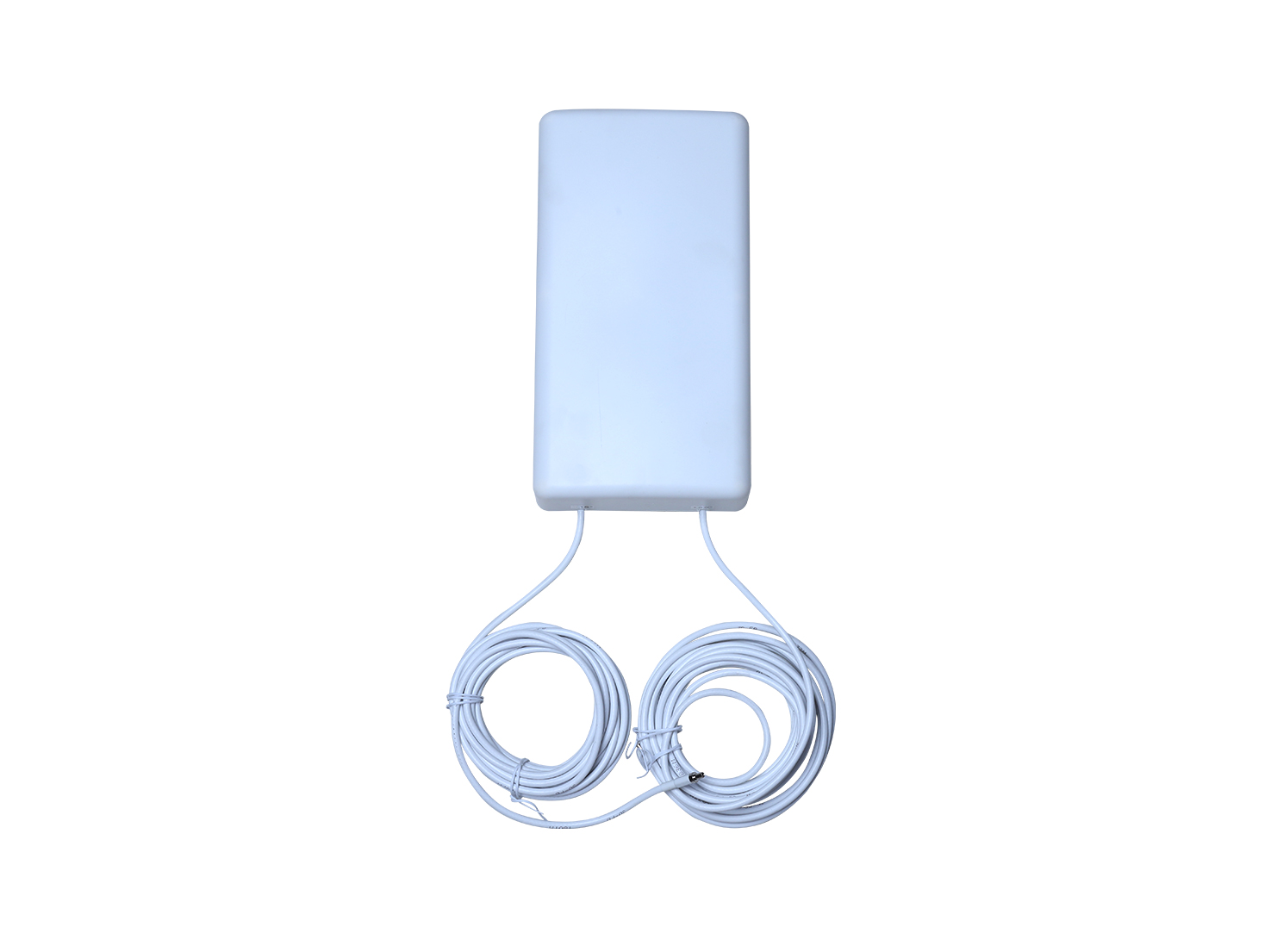

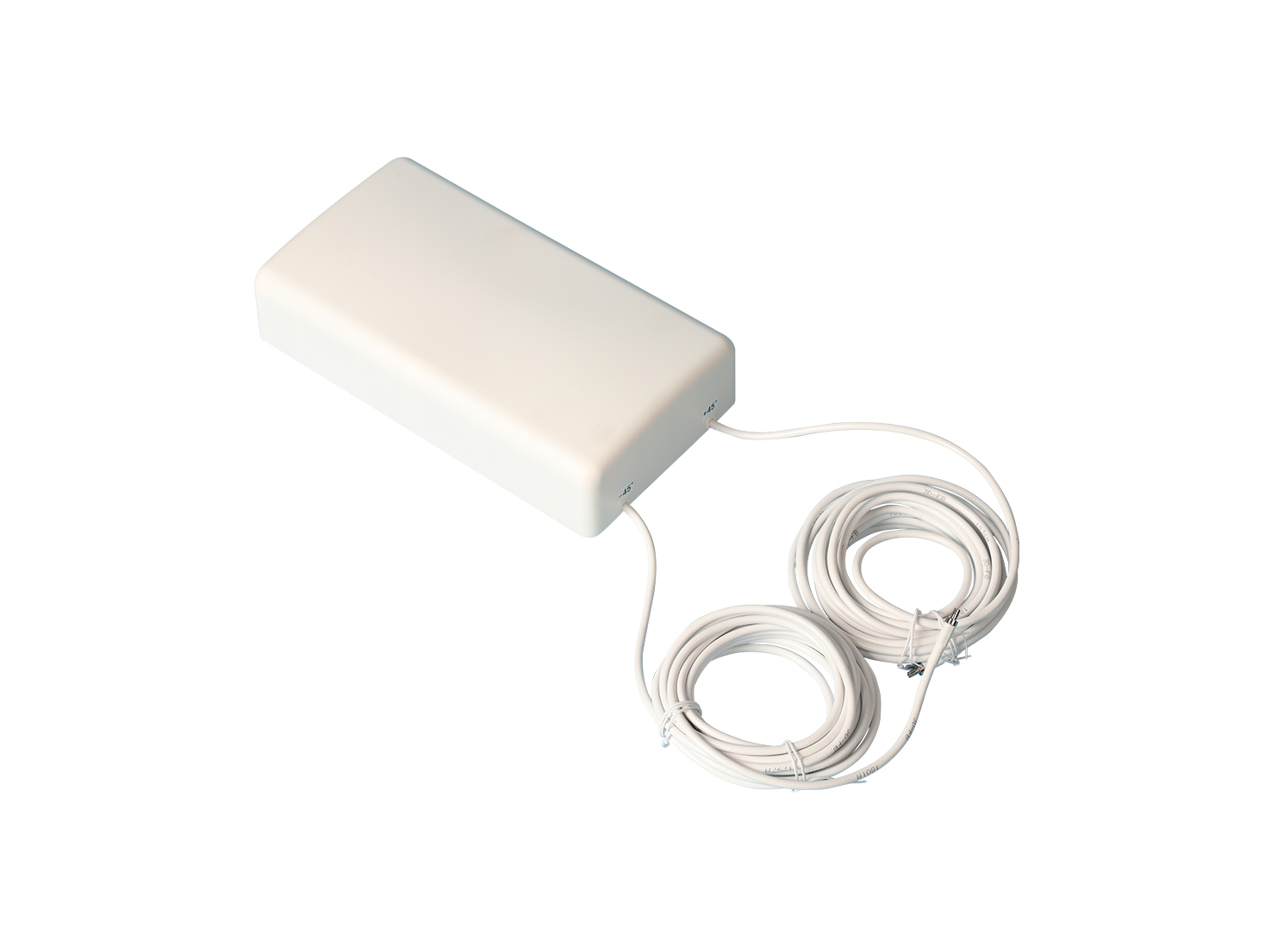

12dBi Outdoor directional Antenna (Dual port)

Frequency range (MHz): 2500-2690MHz / 3300-5000MHz

VSWR: ≤2.5

Gain (dBi): 9dBi@2500-2690MHz / 12dBi@3300-4200MHz

Polarization: ±45° Cross polarization



Leave a messageJT-9292 Long Distance UHF RFID Integrated Reader(Multi-tag) Contact12dBi Outdoor directional Antenna (Dual port)
79b525dc14dc569
64cd071ca1604e4
da5435338d6b824
d995d13973b47
1dcb7e912bdf061
2f6b1467c689202
7594231639a8785
1e8c92c2e412bad
9749a358c8809ea
fc477797f30d072
5a5ef100a4fa

Overview

This directional antenna is a high-gain broadband solution designed to enhance cellular connectivity for 4G and 5G networks. This antenna operates on multiple frequency bands (2500-2690MHz / 3300-5000MHz) to support a variety of cellular applications. Its directional flat panel design provides higher signal strength in the desired direction, making it ideal for applications that require long-range communication or to overcome signal weaknesses.

Key Features

• Wide Frequency Range

The antenna operates over a wide frequency range, ensuring compatibility with 4G and 5G deployments from most major carriers. No need to worry about upgrading the antenna as technology evolves.



• Extended coverage and improved reception

VLG directional flat panel antennas have significantly higher gain (12 dBi) compared to omnidirectional antennas. This means stronger signal, extended cellular coverage, and better reception, especially in areas with weak signal strength.



Specification

Electrical specification
Frequency range（MHz）

2500-2690MHz

3300-5000MHz
VSWR ≤2.5
Gain（dBi）

9dBi@2500-2690MHz

12dBi@3300-4200MHz
Horizontal beam width（°） ＞55°
Vertical beam width（°） ＞20°
Polarization ±45° Cross polarization
Lightning protection DC ground
Mechanical specification
Dimensions（mm） 280mm×180mm×50mm
Number of inputs 2

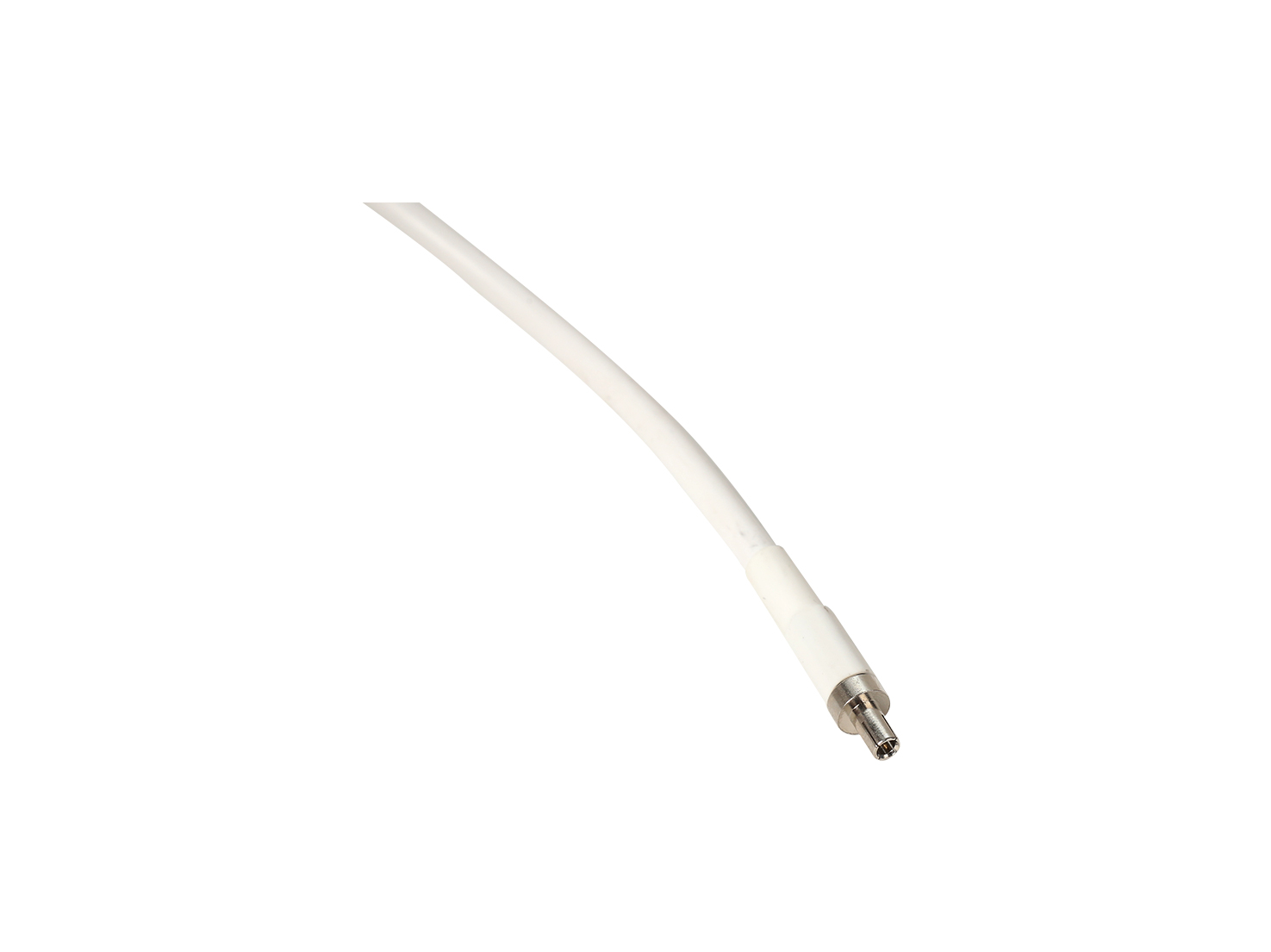

Connector types TS-9

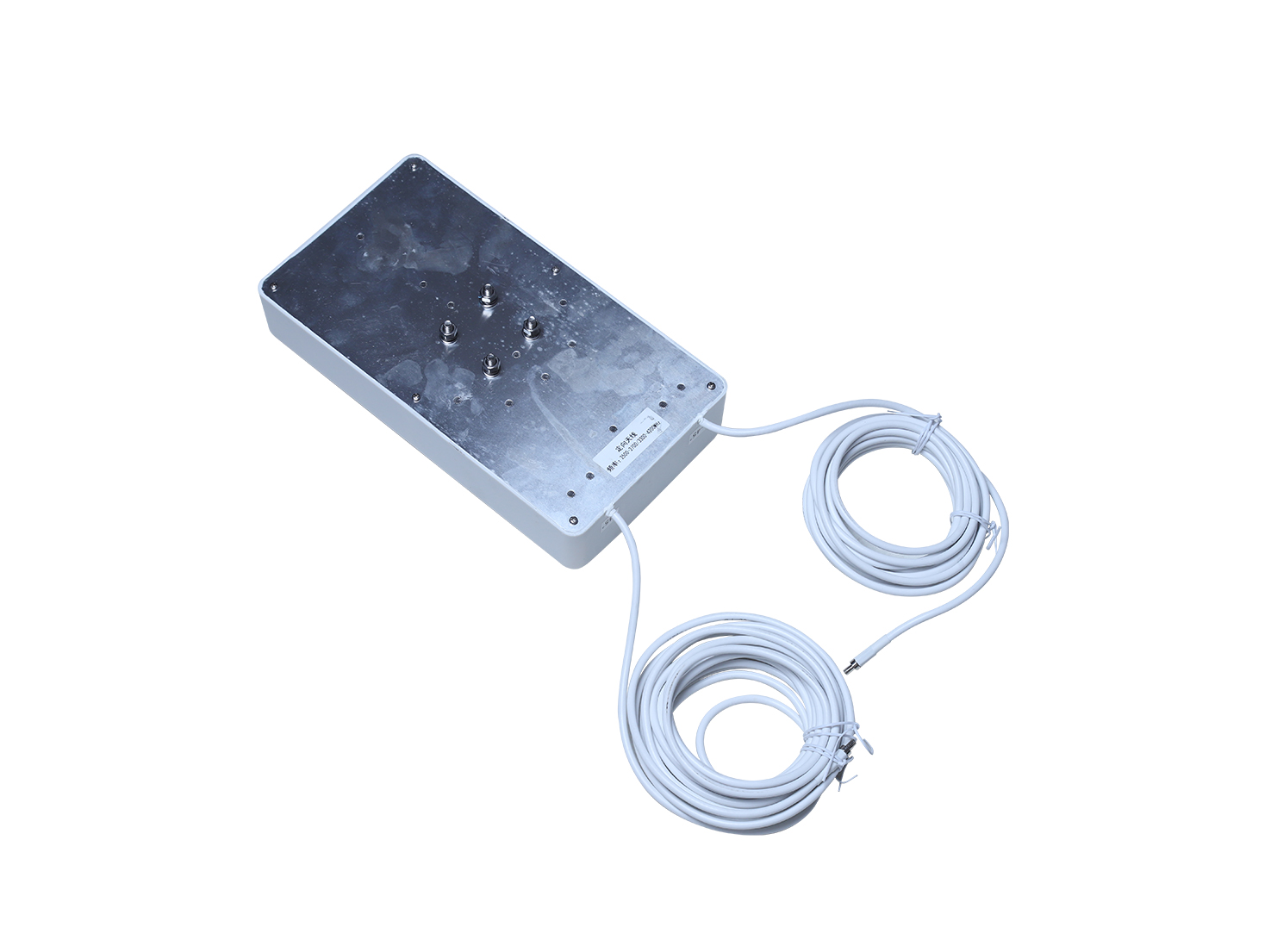

Wall|pole mount included Yes
Radome material UV-protect plastic
Operating temperature（℃） -40°C to + 55°C

Applications
